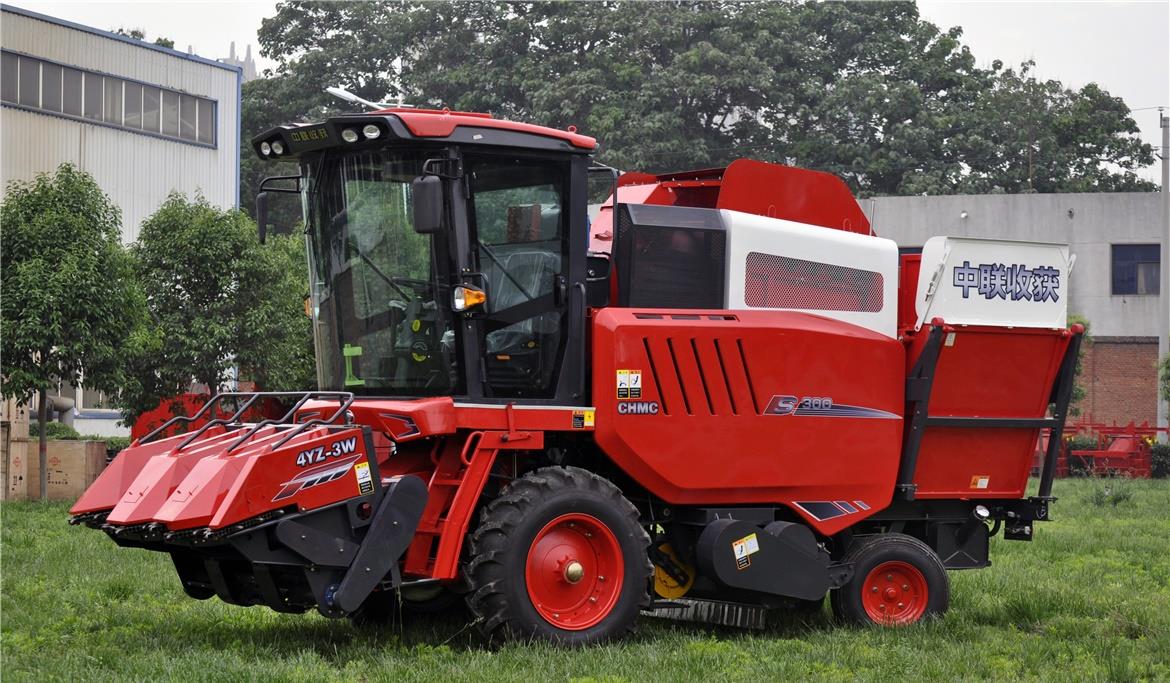

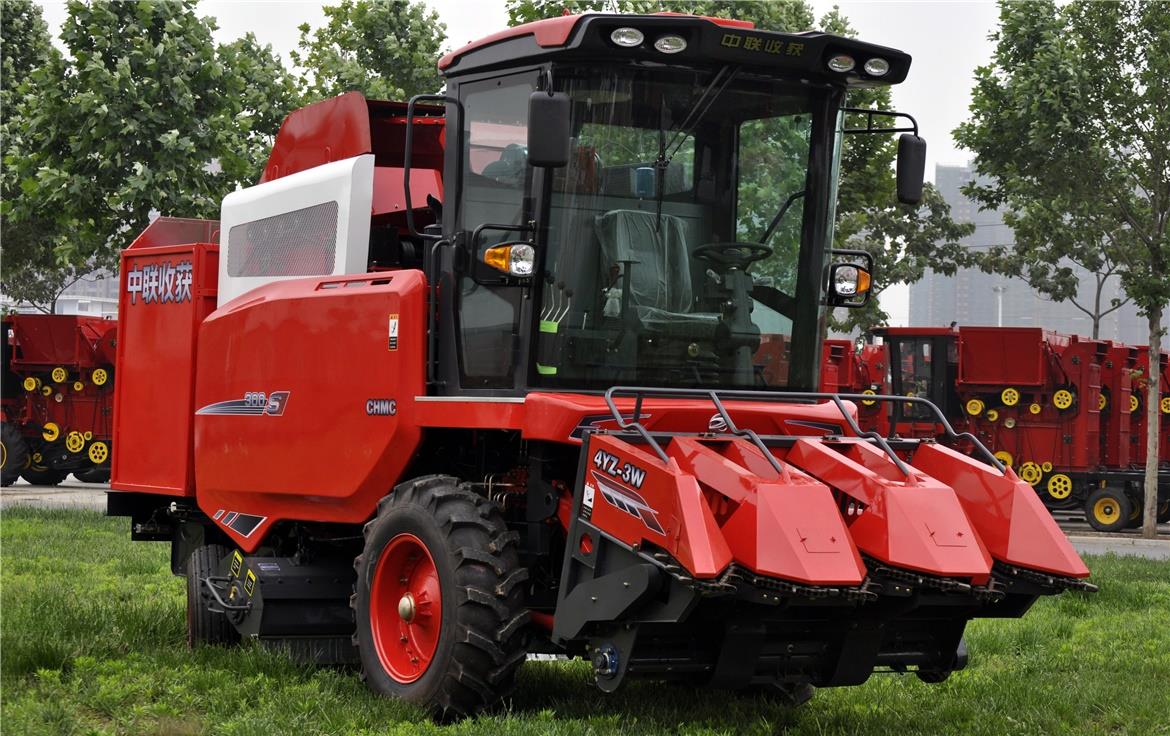

Self-propelled Maize Harvester

Special cutter table, auger-type picking roller, forcelly and quickly to pull the corn stick into cutter table, not intertwine, not blocking.

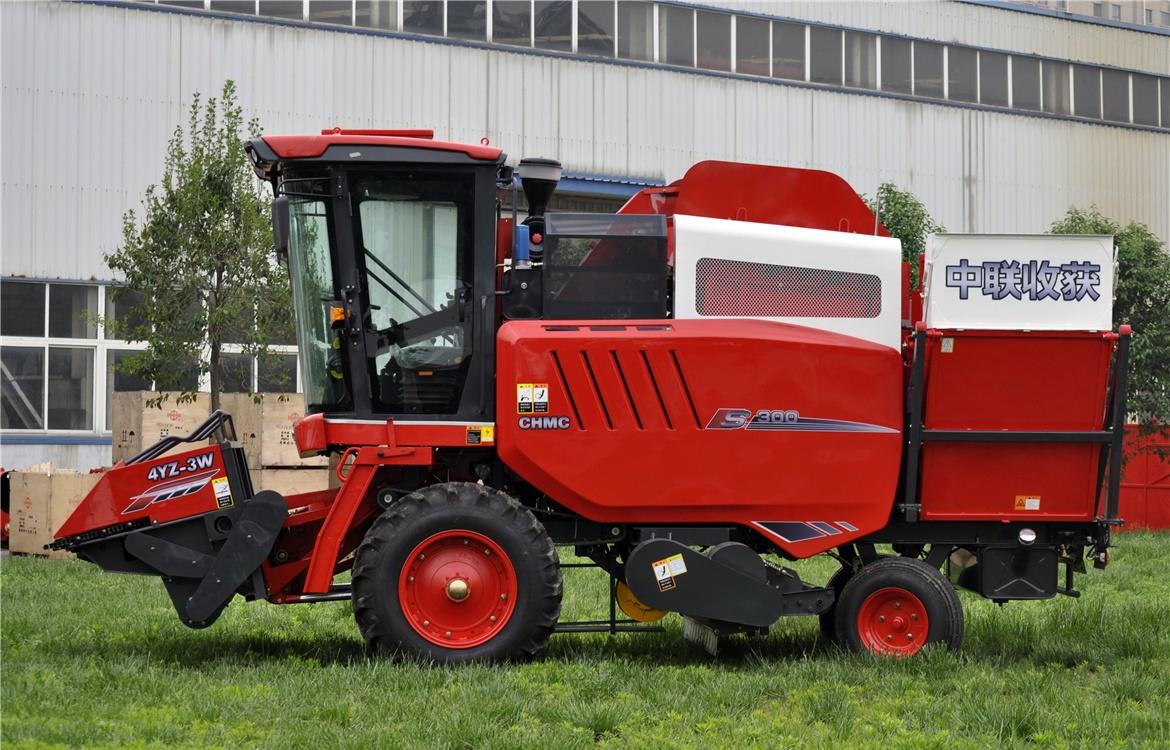

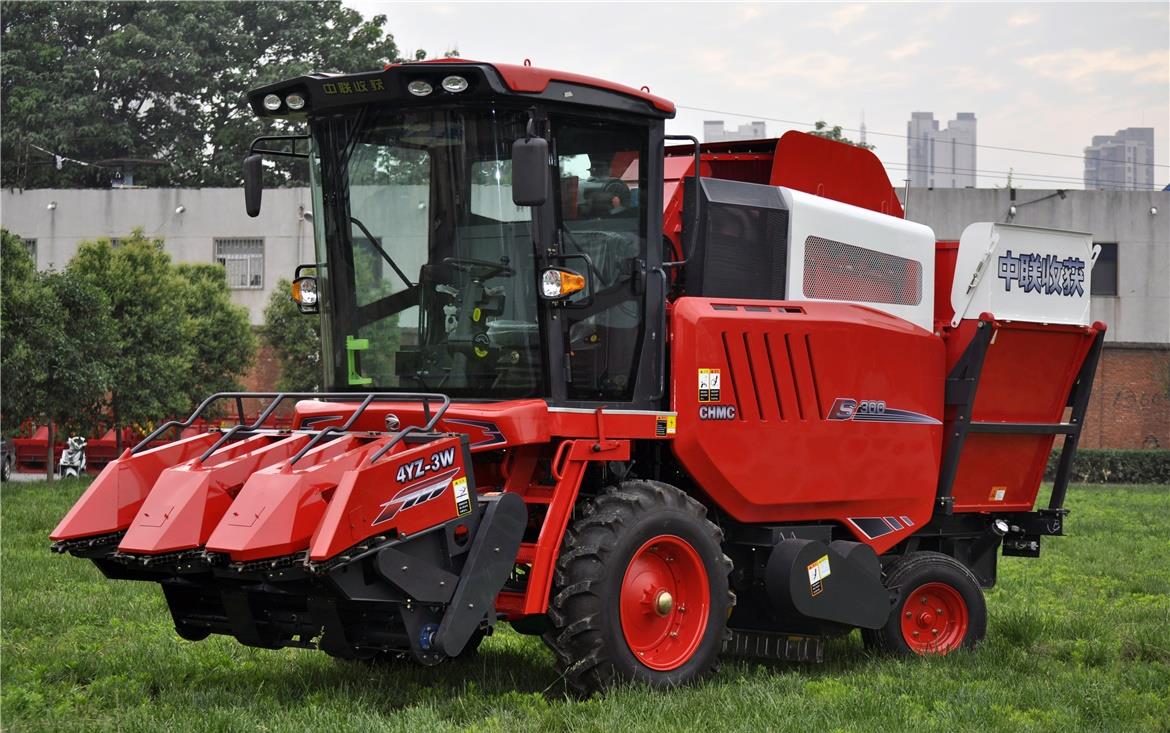

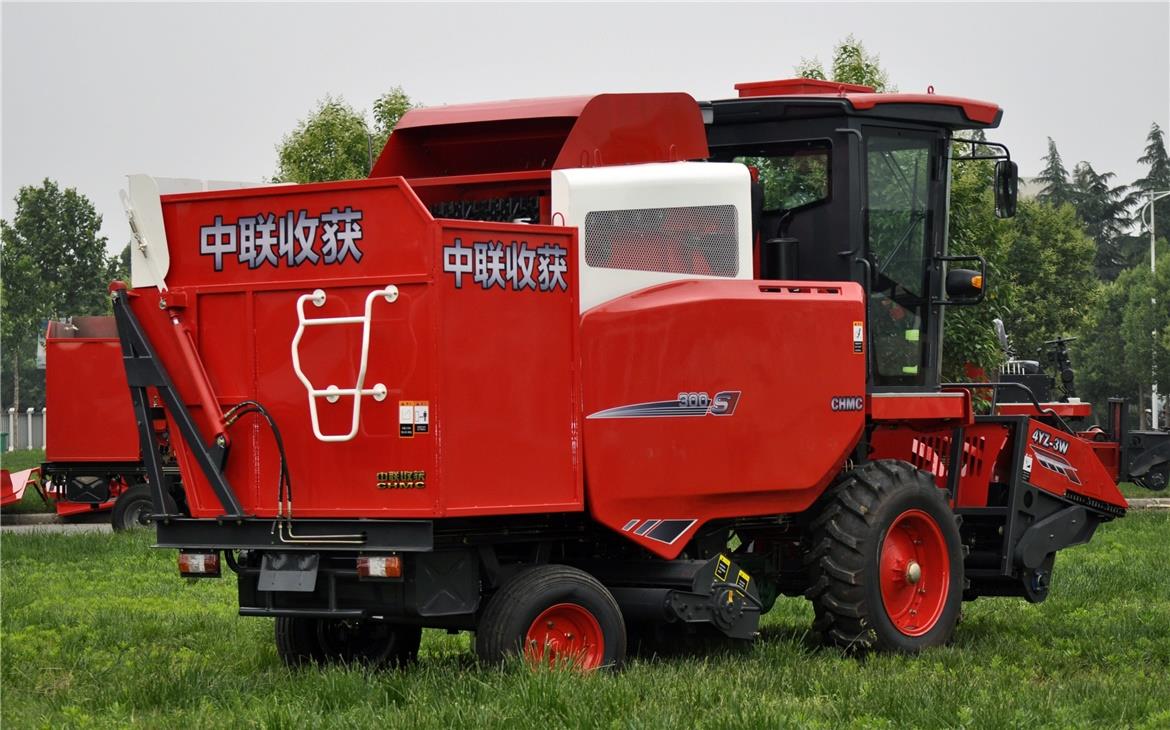

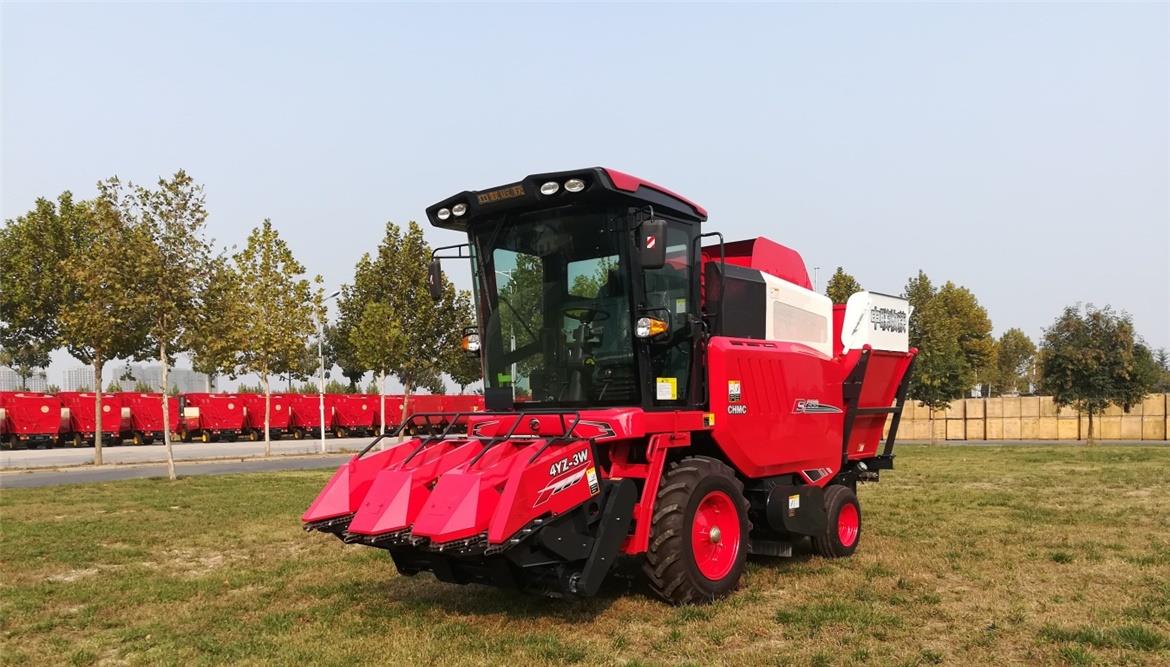

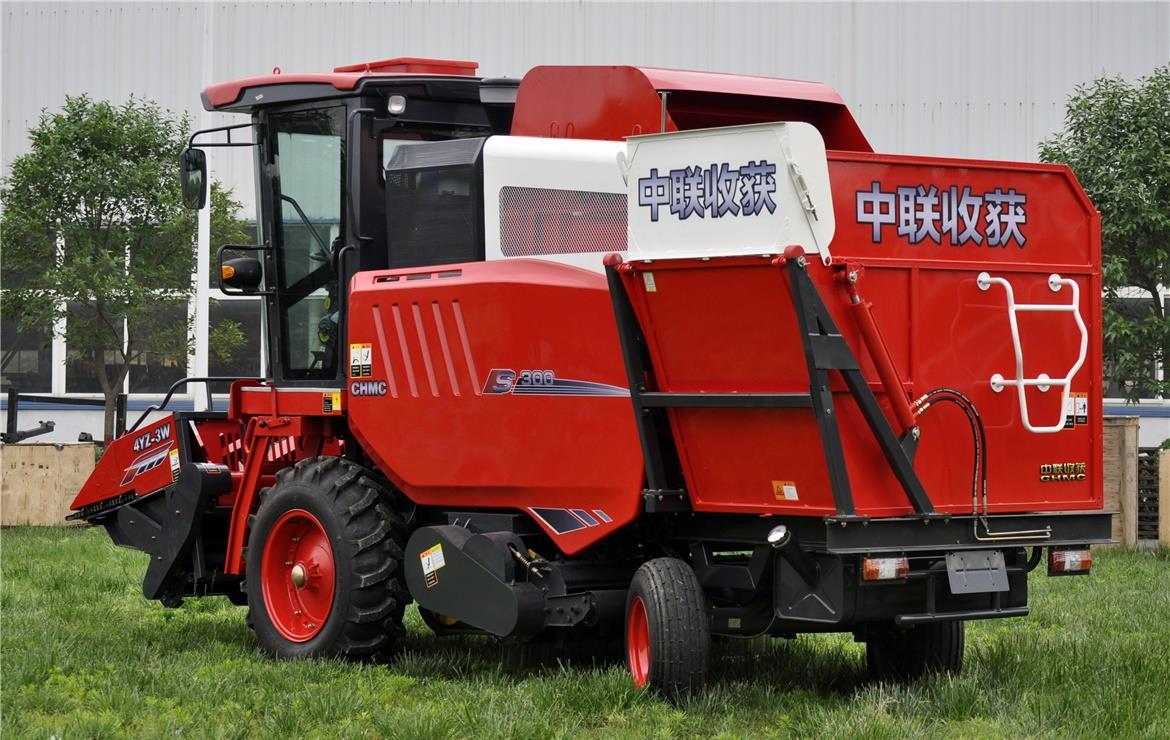

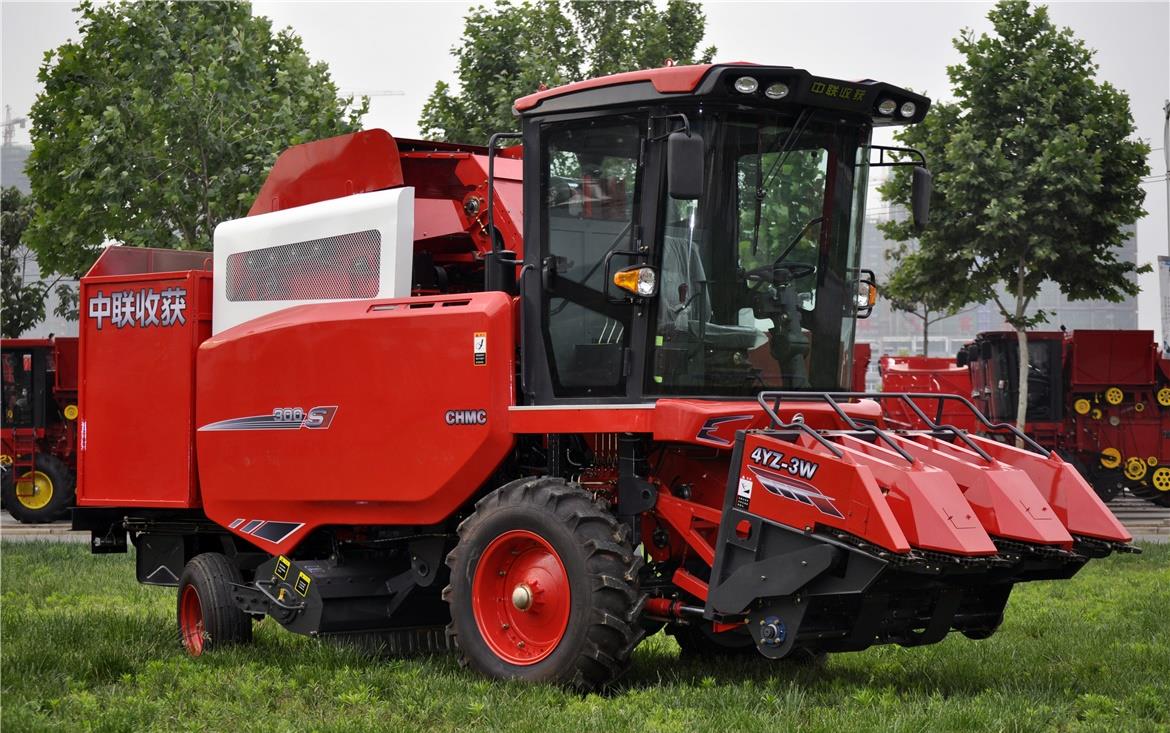

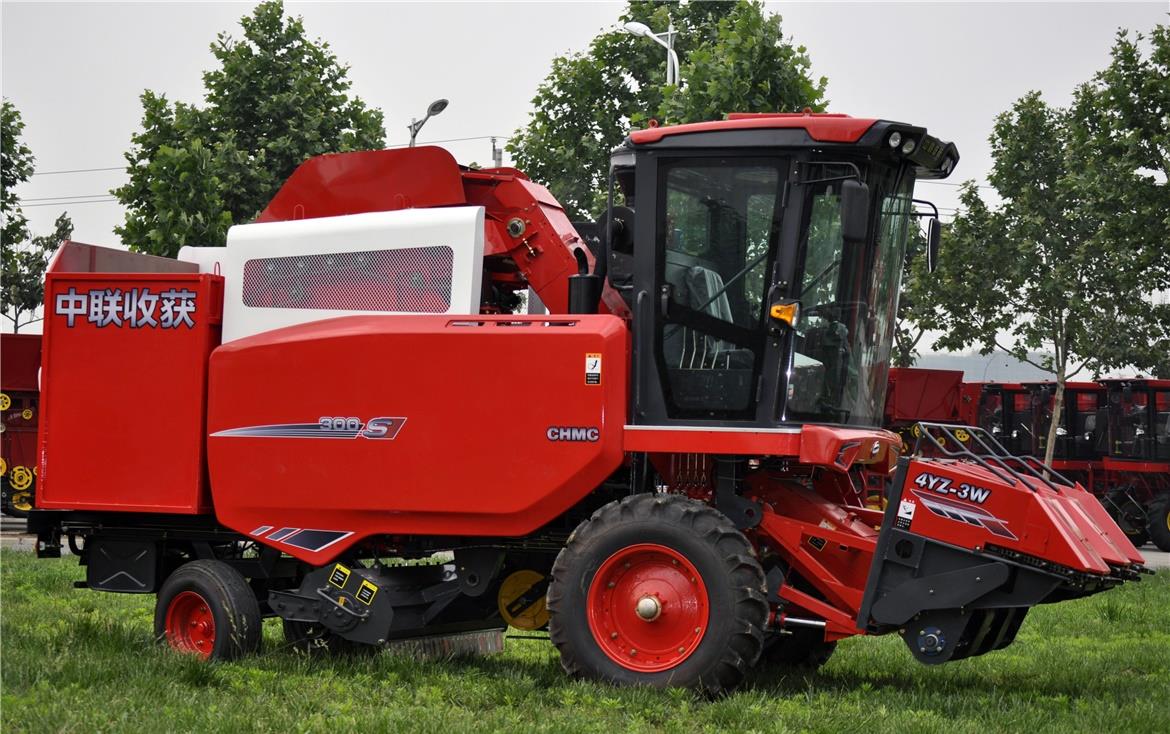

Self-propelled Maize Harvester


1. Short machine body, short front-back wheel distance,small turning radius, easy to turn around in field.

2. Special cutter table, auger-type picking roller, forcelly and quickly to pull the corn stick into cutter table, not intertwine, not blocking.

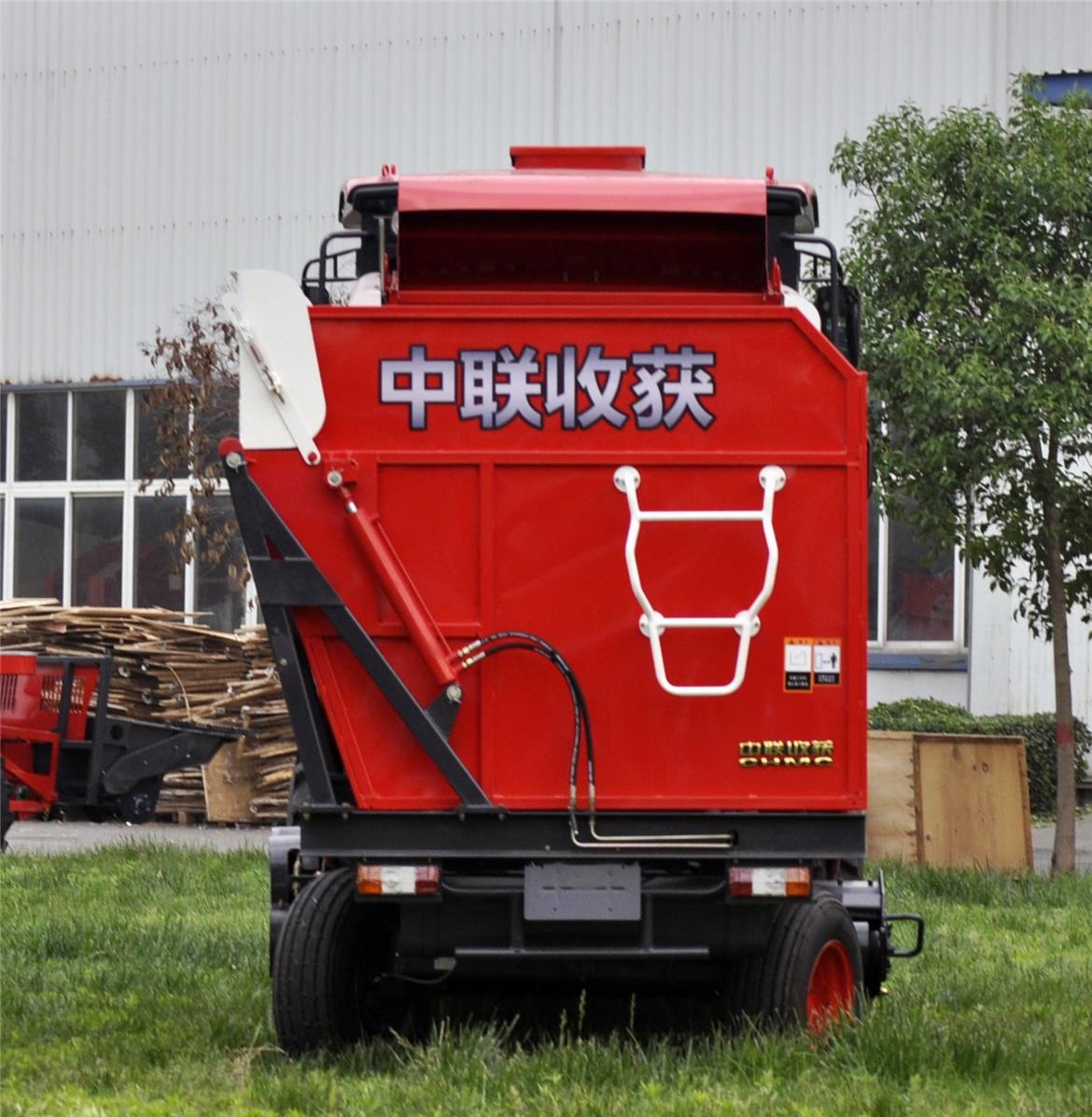

3. Adopt hydraumatic side-dumping device, convenient for corn unloading.

4. Adopt closed, shock-absorbing and big-sized glass cab,comfortable and clear visibility to drive.

5. Peeling device and grain elevator with alarm system,first-time to warn the fault information.

6. Adopt visual images system to monitor grain tank and reversing,convenient,clear and safety.

7. Reserve a termination to connect air conditioner or fan.

8. GPS Beidou positioning navigation system,Intelligent control and monitoring technology. It can remotely manage and repair the system to realize the rotational speed, water temperature, oil pressure sensing and satellite positioning images of the engine, peeling machine, lifter and other functional components to realize remote service.


Q1. How long is the delivery date?

A: In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.

Q2. How can I visit your factory?

A: We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient

Q3: What is our warranty for the machines? And how would our warranty work?

A: We will provide 1 year of warranty for each of our machines, and if there is some part of the machine which won't work, just send us a small video and we will be able to judge which part is not working and mail you the non-working part for free and lively instruct you to change.

Q4. What is your terms of payment?

A: T/T, L/C, Paypal,Western Union

Q5: How is the quality of the harvesrter?

A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.

Packaging & Shipping

1. We need to apart some parts from the whole machine,such as the header,cab,peeling machine,tank and so on,then it can load to the container,one 40' high container can loading one set.

2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.

After-Sales Service

1. Training how to install and use the machine,engineers available to service machinery overseas.

2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.

Self-Propelled Maize Harvester Parts Details

Maintenance notice for each component

1.The running side deceleration bearing and the CVT wheel must be filled with butter for maintenance. (once a day)

2.All double-row drive chains on the corn machine should be timely maintained and lubricated. (once a day)

3.The front cutter should be checked after a period of time working, if there is cadence, replace or sharpen the knife in time.

4.The lifter’s chain must be inspected and re-adjusted for 3-5 days.

5.The power belt on peeling machine transmits should be re-tightened each 1-2 days.

6.The small seeds box between the peeling machine and the granary should be all times. If full, empty in time

7.If there is any debris in the peeling machine, clean it in time, otherwise it will affect the peeling effect and the service life of the peeling roller.

8.Pay attention to the panel at any time, if less diesel,in time to fill up, the EFI engine has exhaust difficulties if no diesel.

9.During use, it is necessary to pay attention to the observation of the panel , oil, water temperature, battery, etc.

10.When replacing the front cutter, be sure to adjust the gap of the fixed knife, remember to tighten the bolt.

11.Adjust any parts, remember to tighten the bolts.

12.The engine must not contain any other objects.It should be cleaned up in time to avoid fire.

13.There is something stuck between the stripping rollers, and it must be cleaned after cutting off the power.

14.All maintenance, must be stopped, after power off(remember never maintenance with power ).


Technical Parameters:


Self-propelled maize harvester


Wheel type


2 drive wheel + 2 direction wheel


Picker + peeling, produce “maize cob”


103kw (140 hp)

Engine speed

2300-2400 r/min

Harvester rows

3 rows

Cutting width


Harvest efficiency

0.27~0.53 hm2/h

Total loss rate


Breakage rate


Impurity rate


Peeling rate


Oil consumption


Minimum maize cob height from field


Granary volume



4990 Kg
