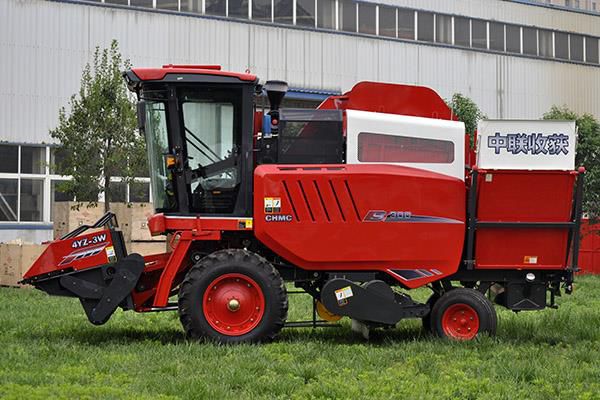

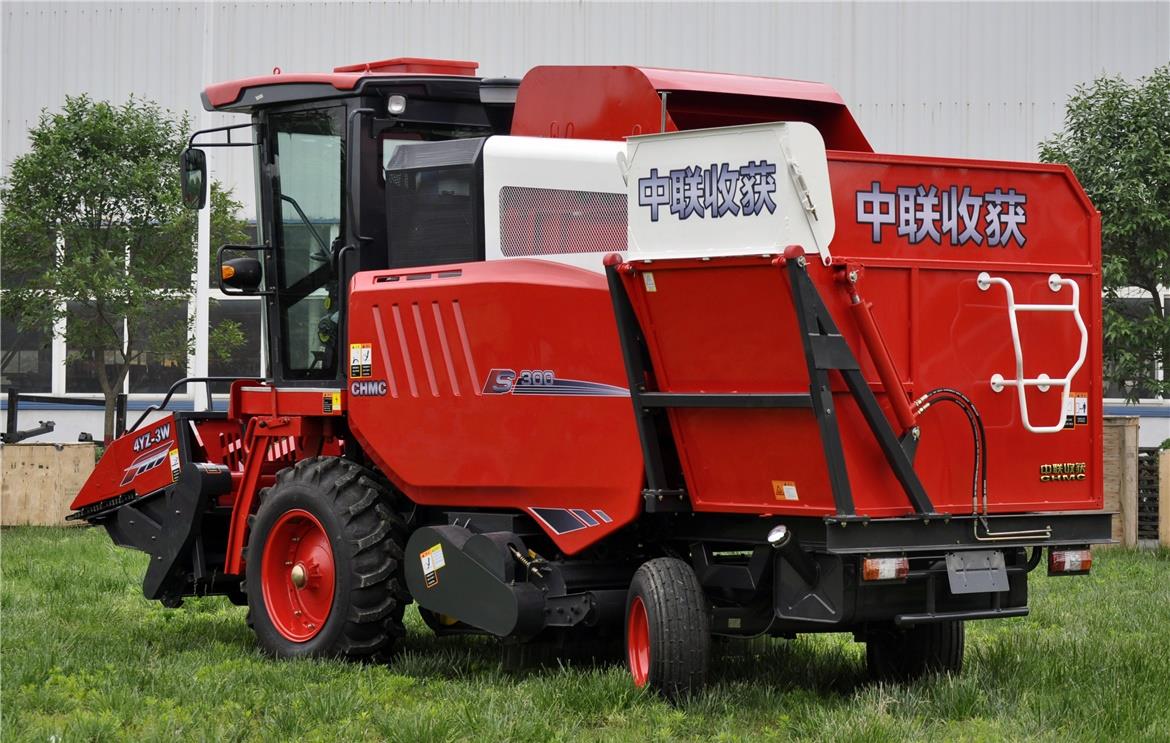

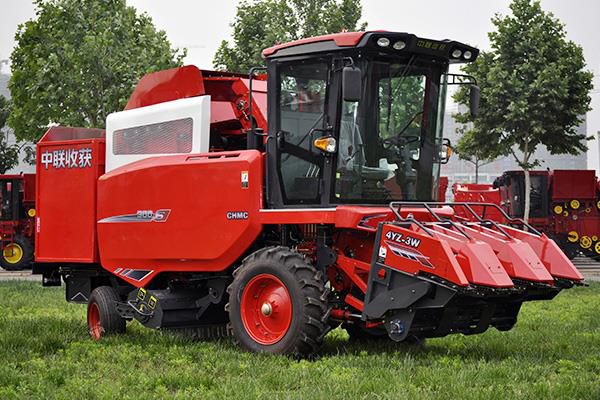

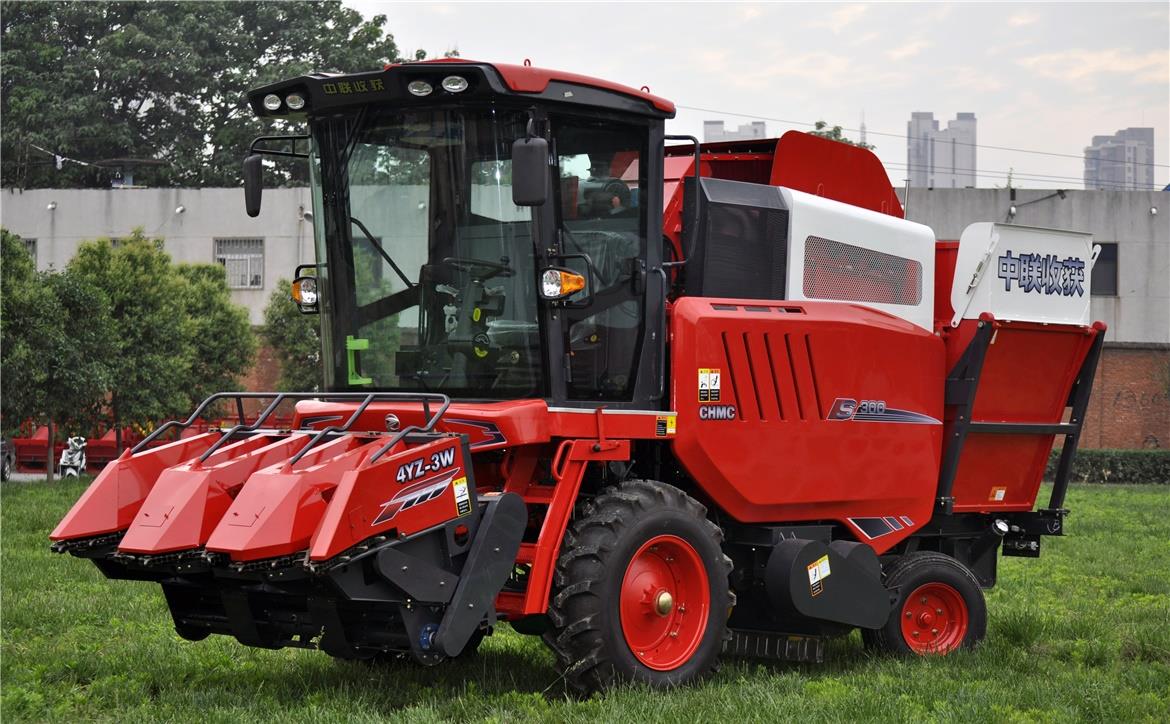

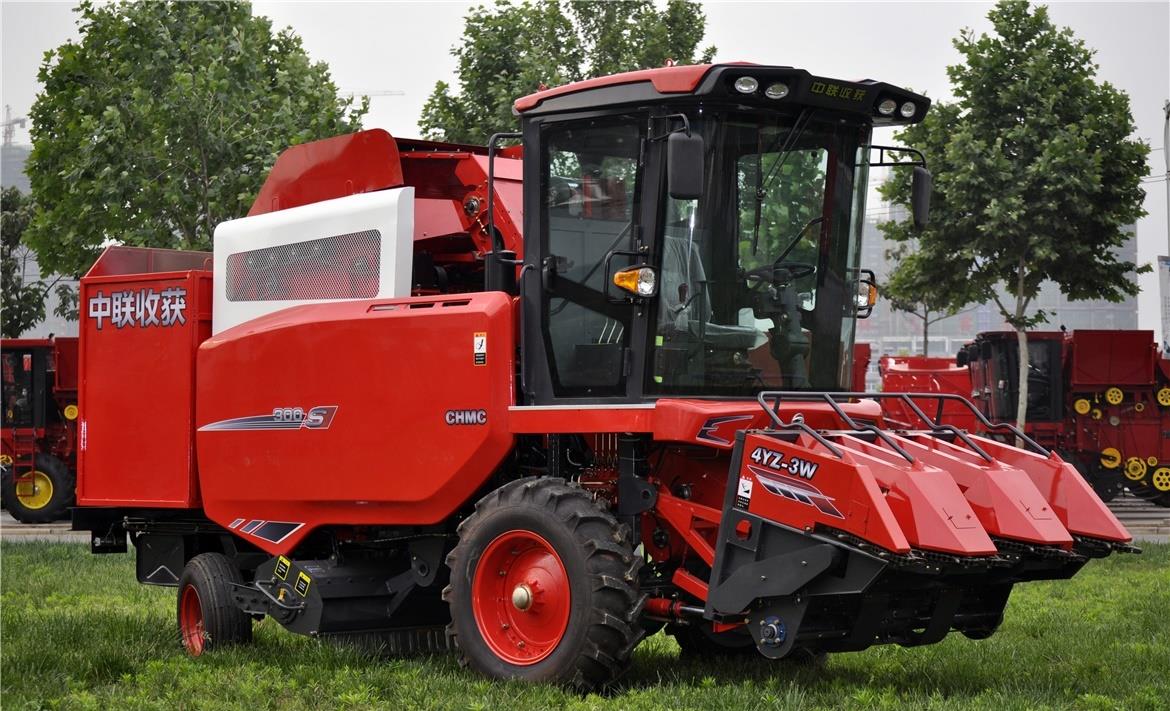

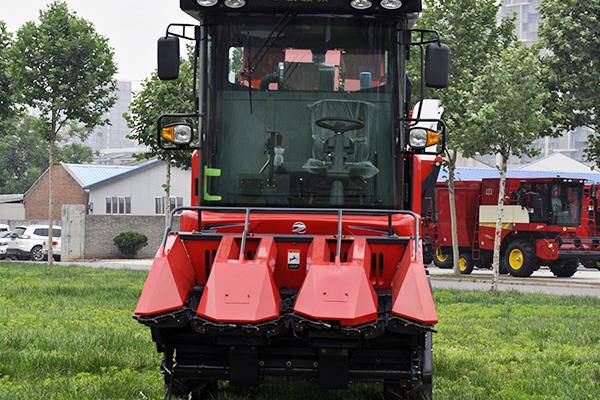

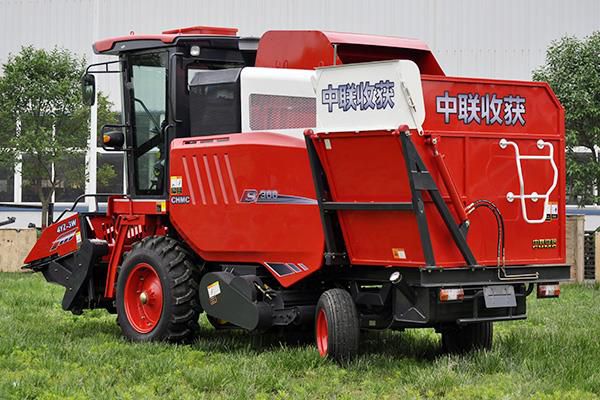

Self-propelled Corn Harvester

Peeling device with special design,adopt soft peeling technology,4 sets peeling device,16 pcs rollers,metal and rubber rollers blended,this design makes peeling more clean, reduces the rate of seed damage&loss.

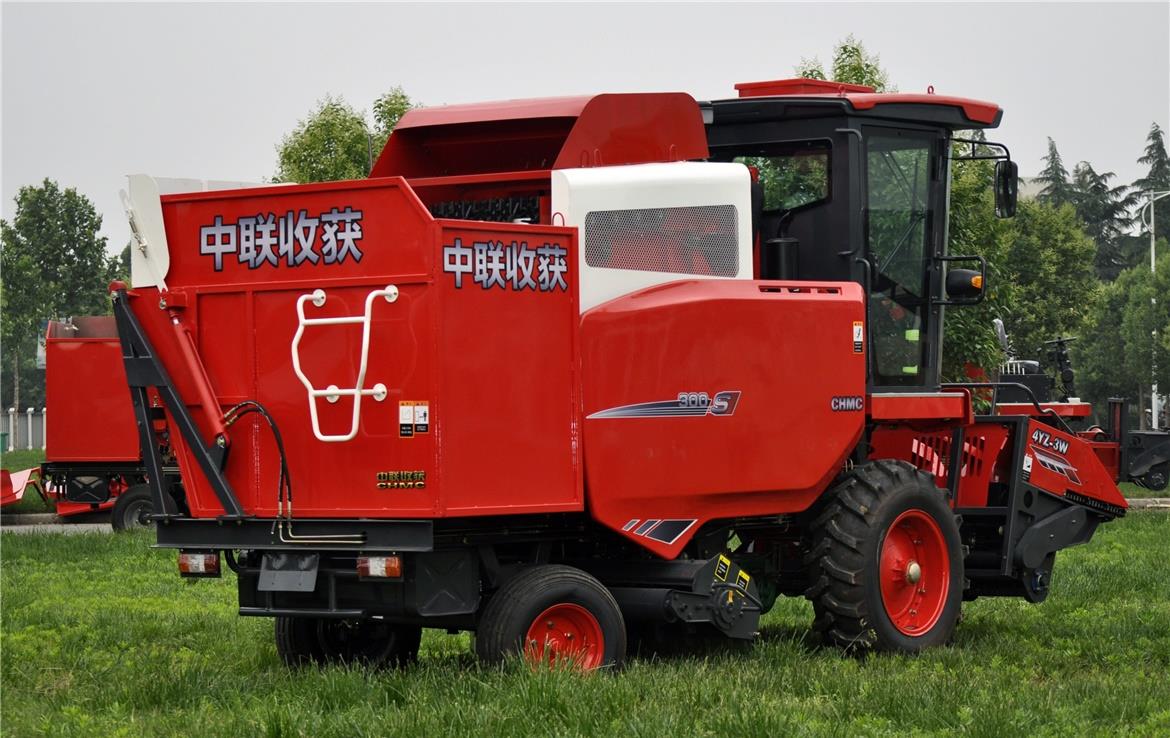

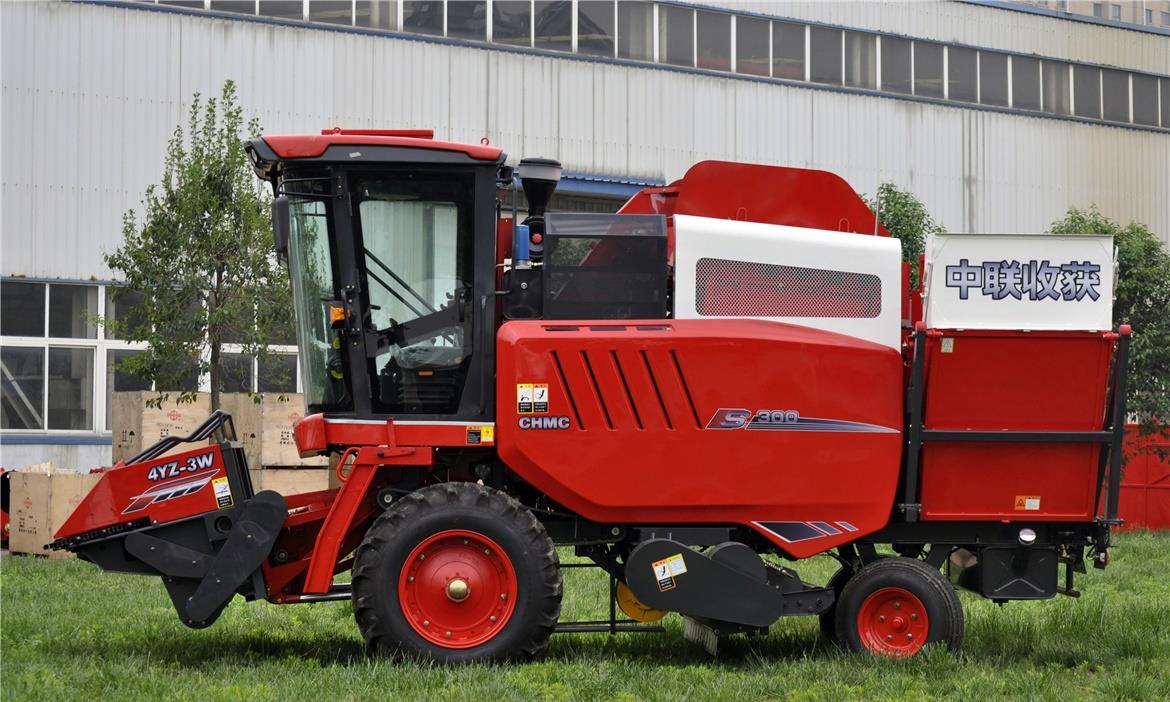

Self-propelled Corn Harvester

Performance

1.Function

--pick up corn

--peeling off the corn and then throw it to the tank

--unload the corn

--chopper the stalks and return it to the field.

2.Peeling device with special design,adopt soft peeling technology,4 sets peeling device,16 pcs rollers,metal and rubber rollers blended,this design makes peeling more clean, reduces the rate of seed damage&loss.

3.Flexible harvesting ways,suitable for different row space and different planting structure,can harvest even not in rows.

4.Assembling shake sieve and seed recycling bins,can collect the fallen corn seed, reduce loss rate.

5.Short machine body, short front-back wheel distance,small turning radius, easy to turn around in field.

6.Special cutter table, auger-type picking roller, forcelly and quickly to pull the corn stick into cutter table, not intertwine, not blocking.

7.Adopt hydraumatic side-dumping device, convenient for corn unloading.

8.Peeling device and grain elevator with alarm system,first-time to warn the fault information.

9.Adopt visual images system to monitor grain tank and reversing,convenient,clear and safety.

10.Reserve a termination to connect air air conditioner or fan.


FAQ:

Q1. How long is the delivery date?

A: In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.


Q2. How can I visit your factory?

A: We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient


Q3: What's your main products?

A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.


Q4. What is your terms of payment?

A: T/T, L/C, Paypal,Western Union


Q5: How is the quality of the harvesrter?

A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.


Packaging & Shipping

1. We need to apart some parts from the whole machine,such as the header,cab,peeling machine,tank and so on,then it can load to the container,one 40' high container can loading one set.

2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.


Pre-Sale Service

--Quick response to customers' inquiry or online message

--Guide customers to choose the best suitable machine model, offer detailed specification and competitive prices


After-Sales Service

1. Training how to install and use the machine,engineers available to service machinery overseas.

2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.


Parts Details

CVT Traveling


1


Adopt CVT Traveling,reliable technology and zero fault.

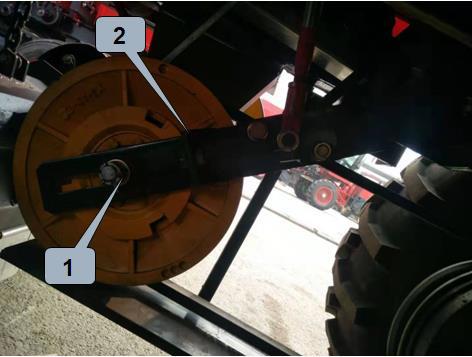

After using CVT transmission for a period of time, you need to check the walking belt. If there is a loose belt, please adjust the adjusting screw in time.

Adjustment method: first loosen one bolt, then adjust the two adjustment screws, and adjust the screw to move outward. (remember to adjust both left and right)

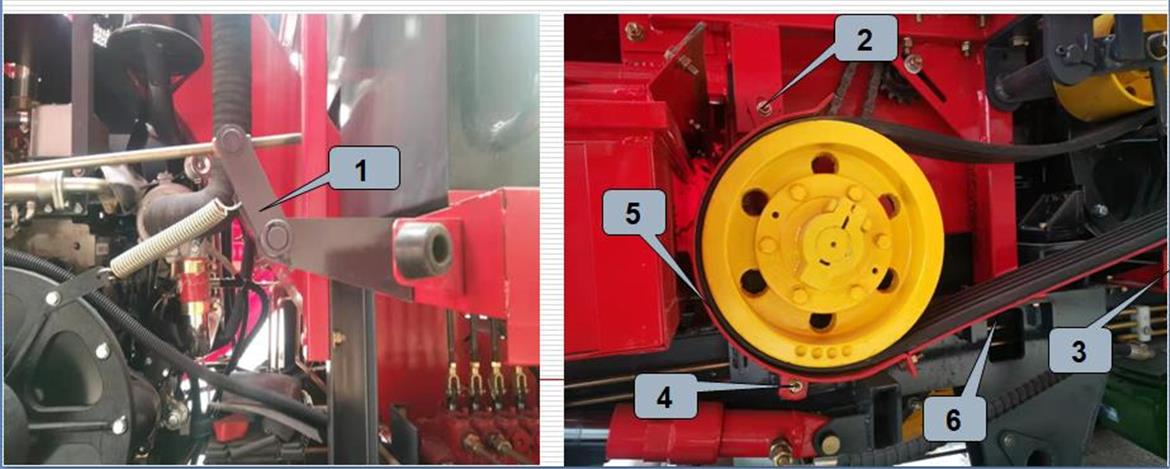

Power Master Clutch

2


1. If the power not enough or weak during the use, it indicates that five joint group has insufficient tension and needs adjustment.


Adjustment method: first, loosen one of the nuts at picture 1, and adjust the other nut to make the rod shorter. If replace the joint belt to let the main clutch combine, you need to adjust the bolts 2 and 4, so that the retainer picture 5 is as close as possible to the belt, but no connect. Finally, adjust the 3 bolts so that the pallets 6 do not touch the belt, then let the main clutch disengage, the pulley on the engine does not touch the five-piece belt.


Technical Parameters:

Model

Self-propelled corn harvester

Type

Wheel type

Wheel

2 drive wheel + 2 direction wheel

Function

Picker + peeling, produce “corn cob”

Power

103kw (140 hp)

Engine speed

2300-2400 r/min

Harvester rows

3 rows

Cutting width

1825mm

Harvest efficiency

0.27~0.53 hm2/h

Total loss rate

≤4%

Breakage rate

≤1.0%

Impurity rate

≤1.5%

Peeling rate

≥85%

Oil consumption

≤20kg/hm²

Minimum corn cob height from field

300mm

Granary volume

6190×2300×3259mm

NW

4990 Kg

Size

6190*2300*3259mm


Display Viewing:

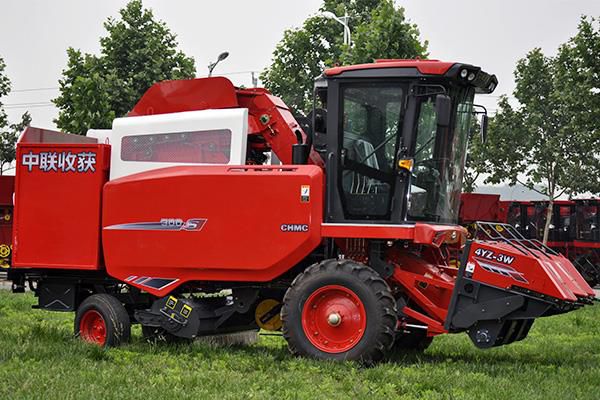

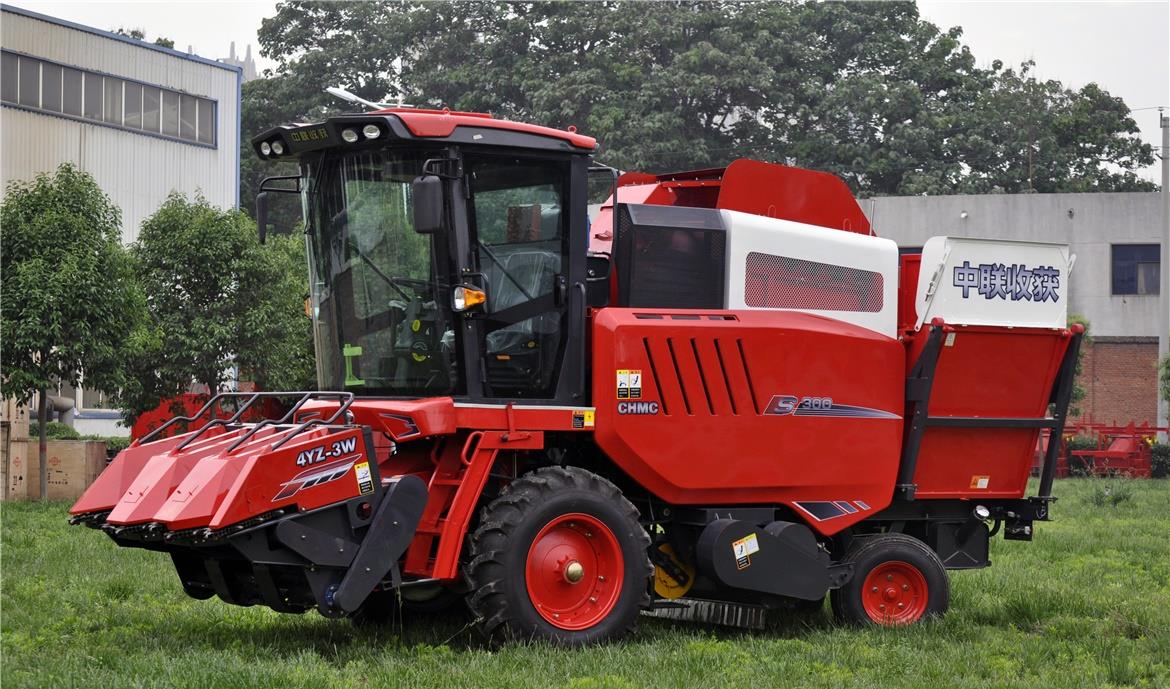

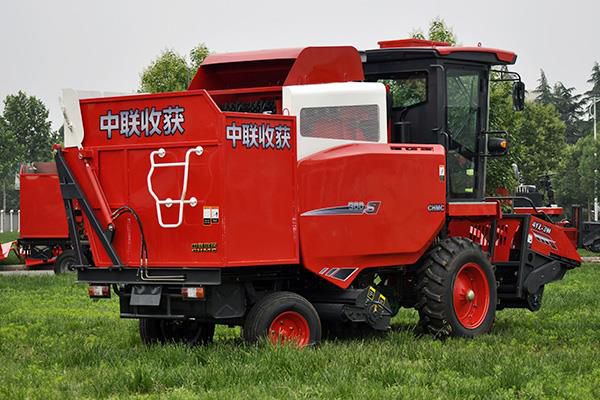

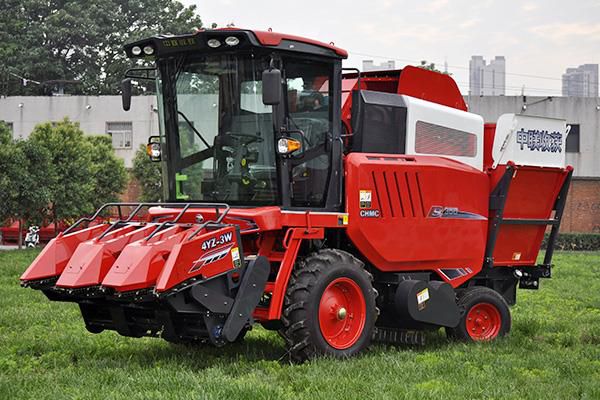

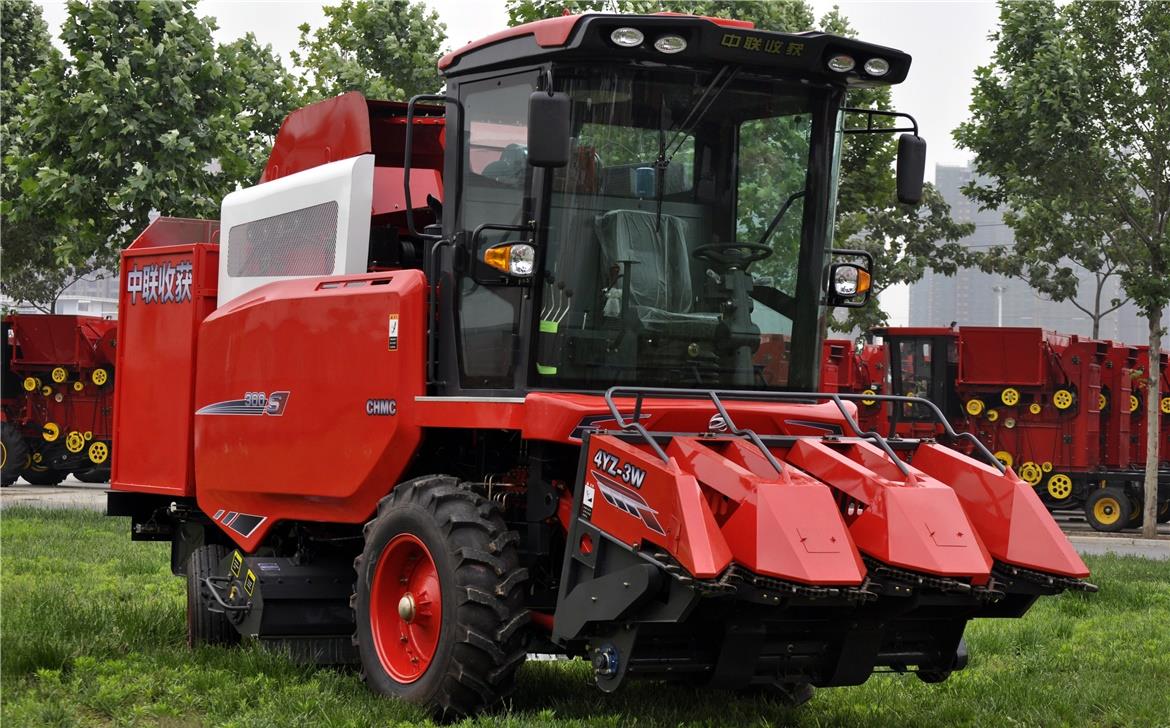

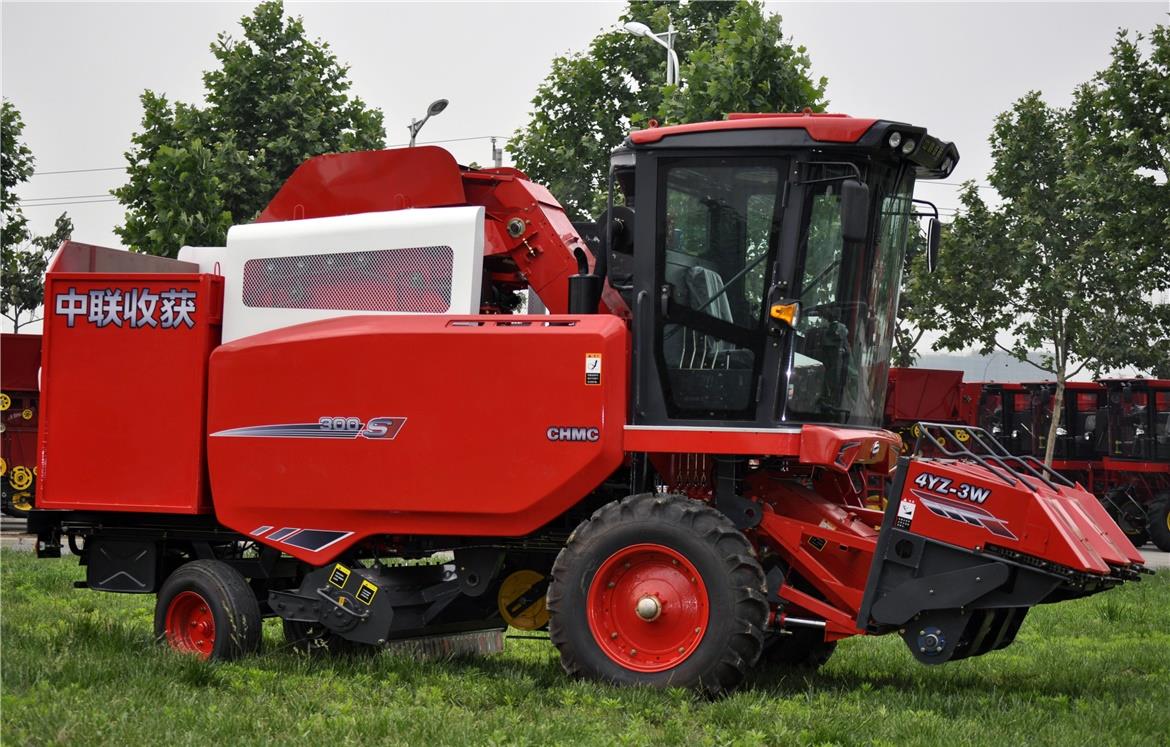

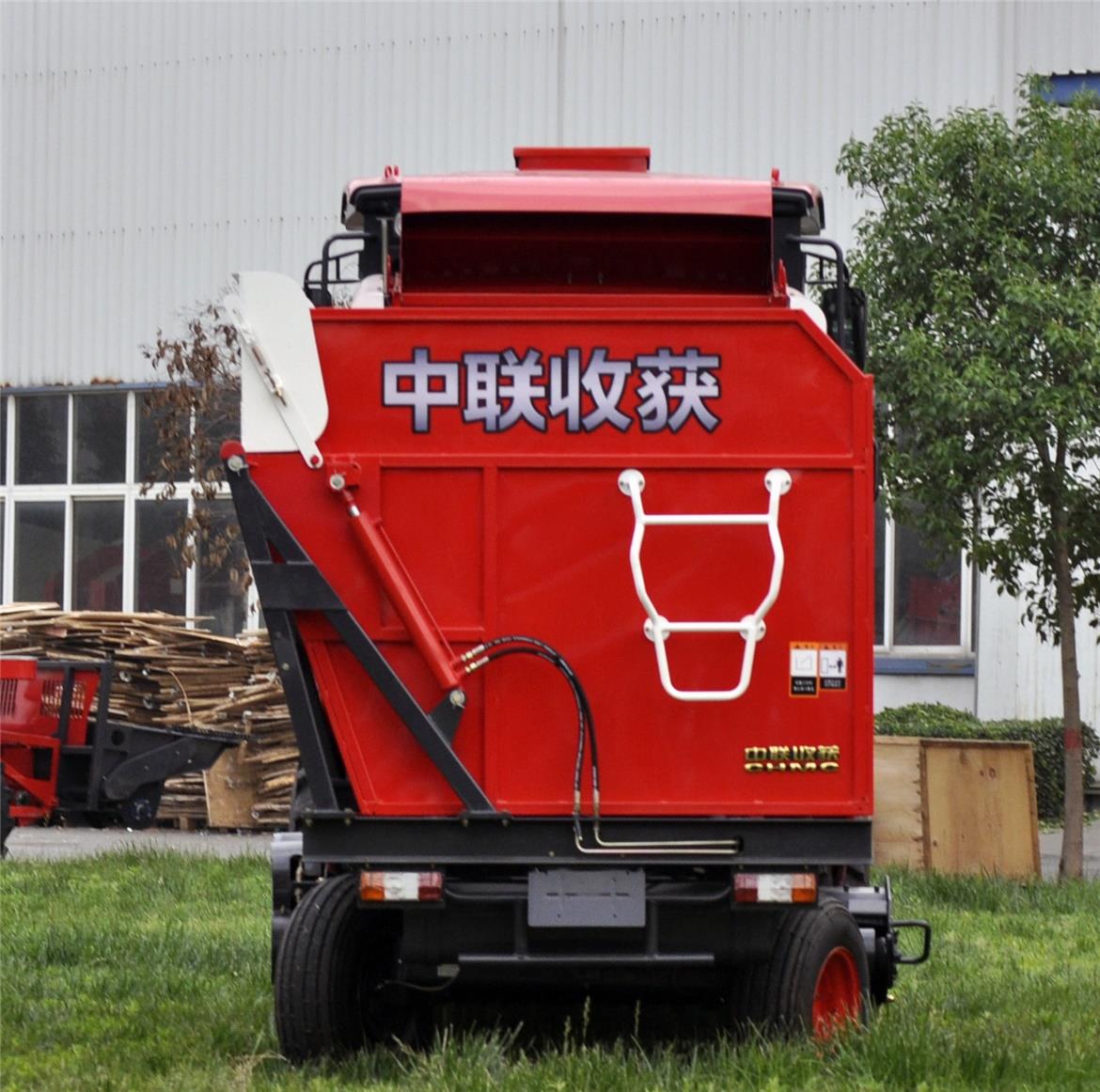

_DSC1319
