We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.
Automatic Peanut Picker
Introduction
The machine is mainly used for peanut direct harvesting or drying harvesting after peanut unearthed. Completing peanut gathering, picking out, fruit vine separating and into the tank respectively at same time.; with its strong performance, compact structure, easy operation, durable safety,the machine adapts to all the land that machine can work.
1. Sealed cab, this reduces the noise, make the driver feel more comfortable.
2. Using a centrifugal fan to send grass, has good fruit&grass separation effect and cleaner forage.
3. Clods cleaning adapts airflow pattern to prevent clogging and reduce the rate of broken peanut fruit.
4. The machine has two tanks, one tank for the peanut, the other tank for the peanut stalk which will be crushed as forage.
5. Removing dust downward, reduce the dust to extend the machine’s life.
6. The picker uses a double track to run smoothly,adopts the circulation mode picking device, improve picking efficiency.
7. the height of picker,speed of roller and fan are visual by a digital display.
Technical Parameters
Specification | Type No. | peanut harvester |
Structural style | self-propelled wheel type | |
Function picking | crash and collect the straw | |
Size ( L*W* H ) | 6485*2770*3420mm | |
Net weight | 5250kg | |
Gear box | mechanical | |
Engine power | 120 hp | |
Cutting width | 2500 mm | |
Work efficiency | 0.27—0.54 hm2/h | |
Total loss rate | ≤ 3.5% | |
Broken rate | ≤ 2.0 % | |
Impurity rate | ≤ 5.0 % | |
Stem recovery rate | ≥ 93 % | |
Unloading way | mechanical unloading | |
Fruit unloading height | 2300 mm | |
Grass unloading height | 2120 mm | |
Fruit tank volume | 2.35 m³ | |
Grass box volume | 5.3 m³ | |
Type of drive | 2 wheels drive | |
Transportation and Package | 1 set in a 40'HC (dis-assembled ) |
FAQ
Q1: How long is the delivery date?
A: In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.
Q2: How can I visit your factory?
A: We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient
Q3: What's your main products?
A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.
Q4: What is your terms of payment?
A: T/T, L/C, Paypal,Western Union
Packaging & Shipping
1.We need to apart some parts from the whole machine,such as the header,cab,peeling machine,tank and so o,than it can load to the container,one 40' high container can loading one set.
2.We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.
After-Sales Service
1.Training how to install and use the machine,engineers available to service machinery overseas.
2.Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.

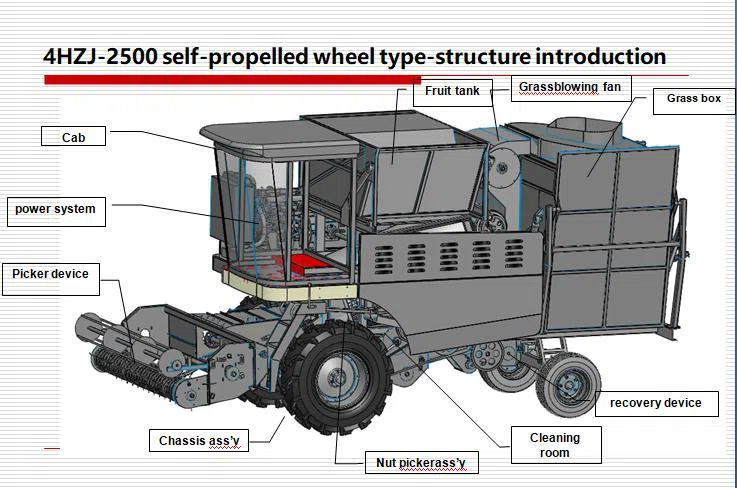

Automatic Peanut Harvesting Machine Parts Details
Main technical features
1.Complete picking, low loss rate, and the feeding smoothly;
2.Luxury sealed shock absorber cab;
3.Vertical axis flow picking fruit, wind-driven fruit collection, high efficiency;
4.Chopped vine, stem and grass recycling, resource reuse;
5.Famous engine, strong power.
Main configuration
1. Engine:National famous brand
Power120/130/140hp to choose
2. Picking width: 2.55m
3. Picking way: slide rail & spring-tooth type
4. Picking type: vertical axial roller type.

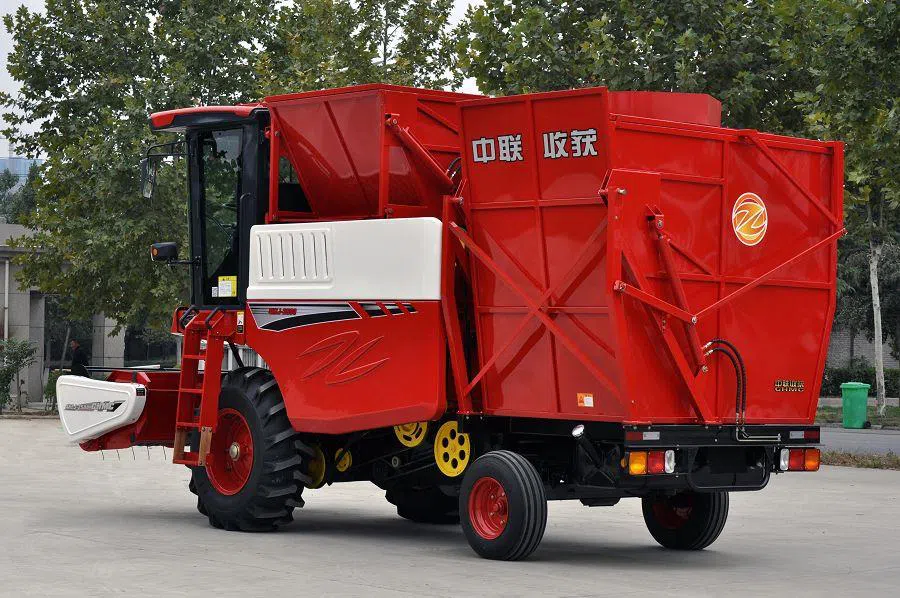

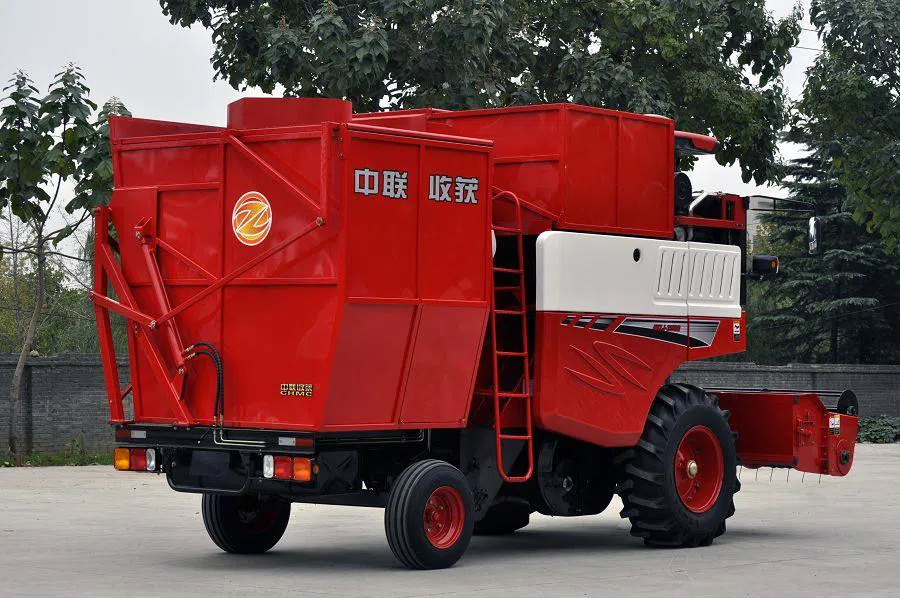

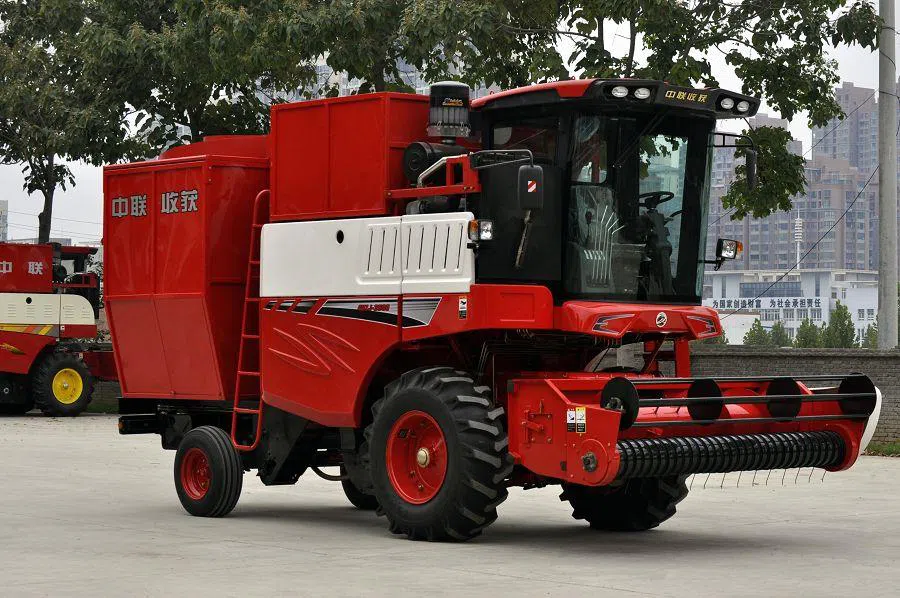

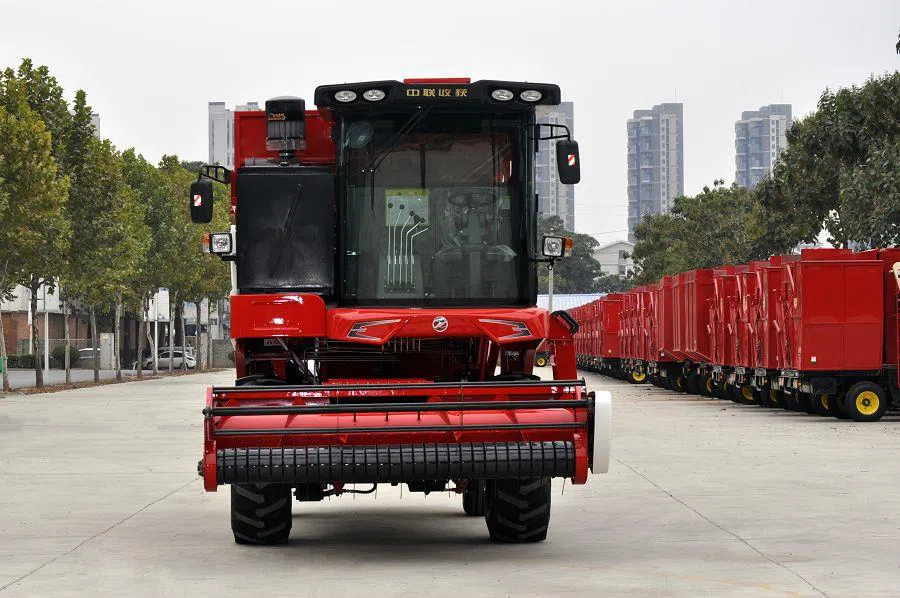

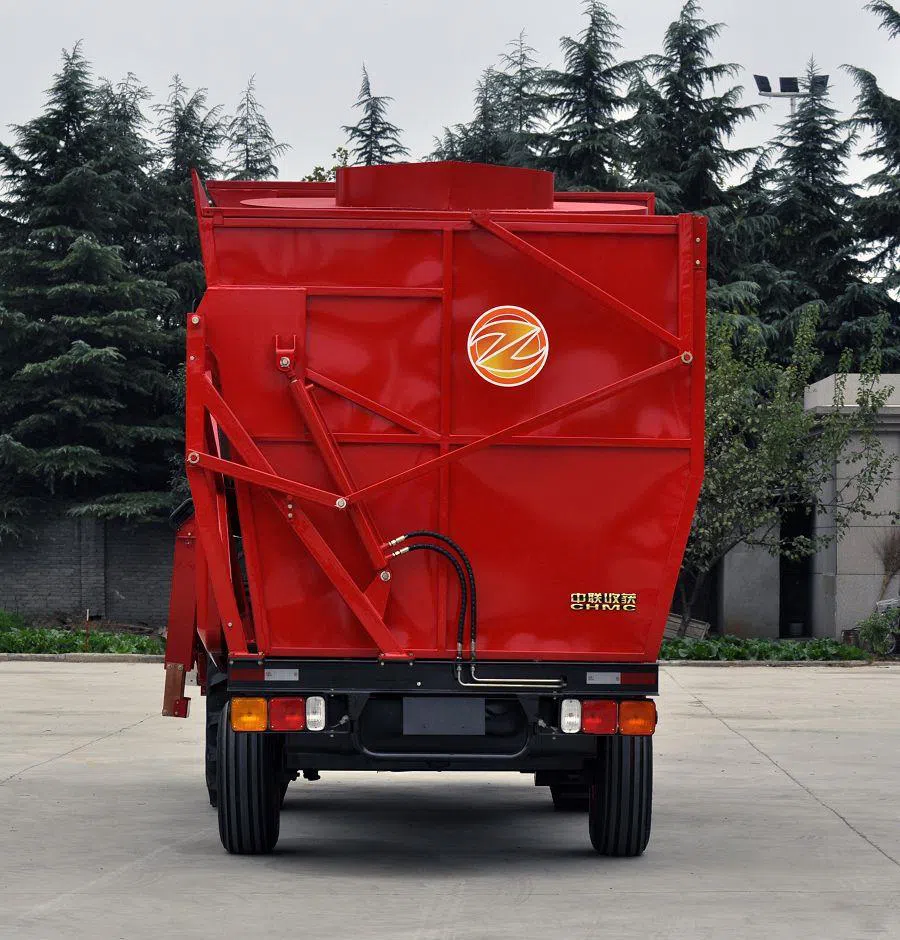

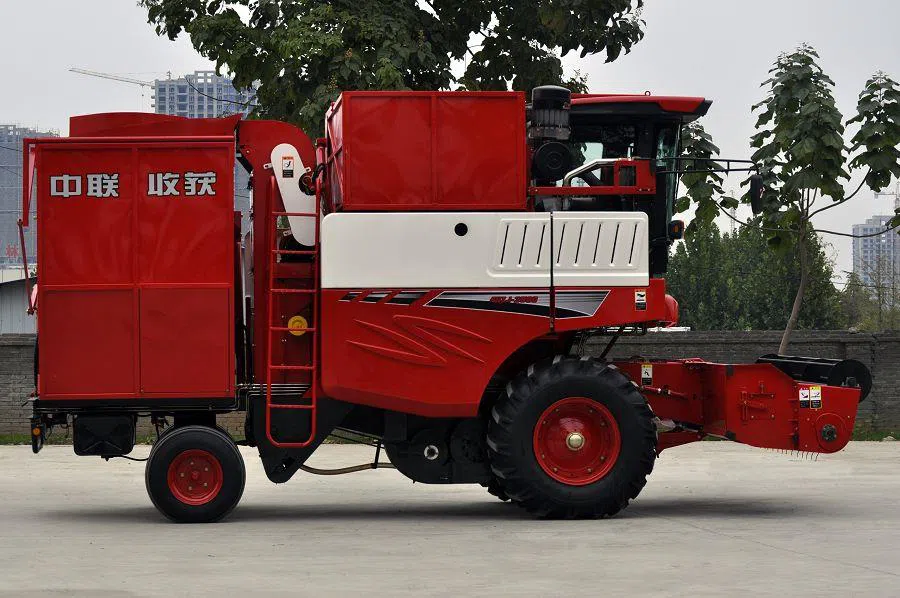

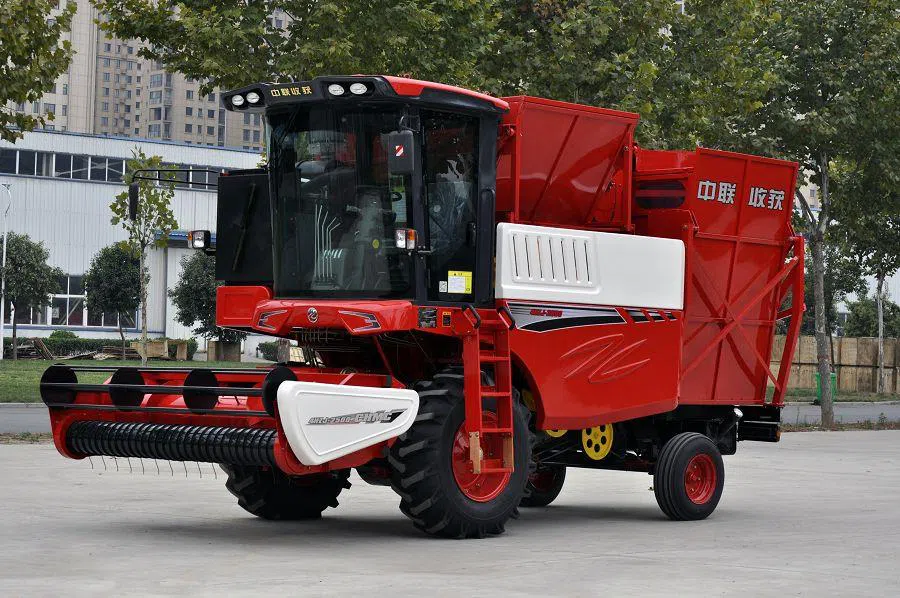

Peanut Harvester Display Viewing
