Claas Lexion 570 Paddy Wheat Picker

Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.

Claas Lexion 570 Paddy Wheat Picker

Paddy Wheat Picker

1(001)


1. Double-layered stepwise sieve for better cleaning, no grass, no chaff.

2. Widen elevator,increase granary, reduce unloading rice times.

3. Configuration with new twisting, high-rib tire, standard grain unloading tube and shear flow and transverse uniaxial flow roller

4.Adopt automatic high-level unloading soybean tank,which is suitable for different soybean transportation vehicles, labor-saving and quickly unloading.

5.With a larger water tank,and a new design radiator cover, to ensure the engine will not be high temperature after a long time working under a harsh environment.

6. Whole machine widened and lengthened,with soybean dedicated flexible cutting table, the harvesting is more efficient and lower loss rate.

7.The cutter is automatic profile modeling float cutter specialized using for harvesting soybean, to ensure that the machine can harvest the lowest bean crop

8. Adopt 175HP engine and new transmission components, powerful and durable.

9.Mainly for soybean harvest,if change the parts,can also be used to harvest soybean,rape,corn seed,etc.,

2(001)


Technical Parameters


Model

self-propelled soybean  harvester

Type

Wheel type

Wheel

2 drive wheel, 2 direction wheel

Size

6700*3110*3350 mm

NW

5405 Kg

Function

Cutting,threshing and collection

Power

175HP

Speed

2200 r/min

Style

4 cycle diesel

Cutting width

2680 mm

Feed quantity

8 Kg/s

Work efficiency

0.8-1.2 hm2/h

Oil consumption

≤20 kg/hm2

Drive speed

1.7-22.4 hm/h

Minimum soybean height from field

320mm

Soybean unloading

Mechanical

Soybean tank

2000 L

Fuel tank

220 L

Gear box

Mechanical

Type

Rasp bar

No. of rasp bars:

8

Cylinder diameter

550 mm

Cylinder width

900 mm

Total loss rate for wheat

≤1.2%

Total loss rate for rice

≤3%

Breakage rate

≤1.0%

Impurity rate

≤2.0%

Packaging & Shipping

1. We need to apart some parts from the whole machine, such as the header, cab, peeling machine, tank and so that it can load to the container, one 40' high container can loading one set.

2.We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.

3(001)


After-Sales Service

1.Training how to install and use the machine,engineers available to service machinery overseas.

2.Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer's satisfactory.

4(001)


Paddy Wheat Cutter Parts Details


Claas Lexion 570 Paddy Wheat Picker(图5)

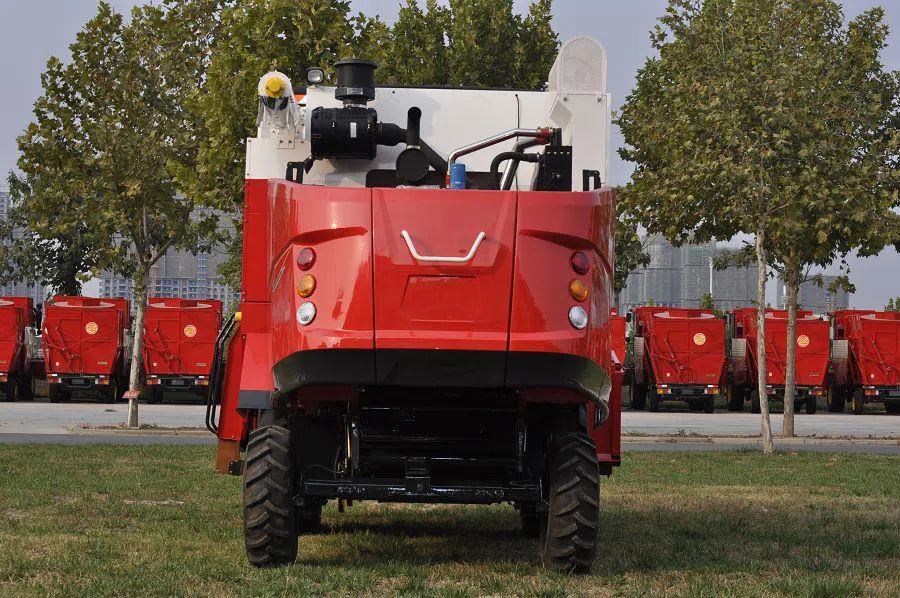

Claas Lexion 570 Paddy Wheat Picker(图6)


Claas Lexion 570 Paddy Wheat Picker(图7)


Claas Lexion 570 Paddy Wheat Picker(图8)
