The cutter is automatic profile modeling float cutter specialized using for harvesting soybean, to ensure that the machine can harvest the lowest bean crop

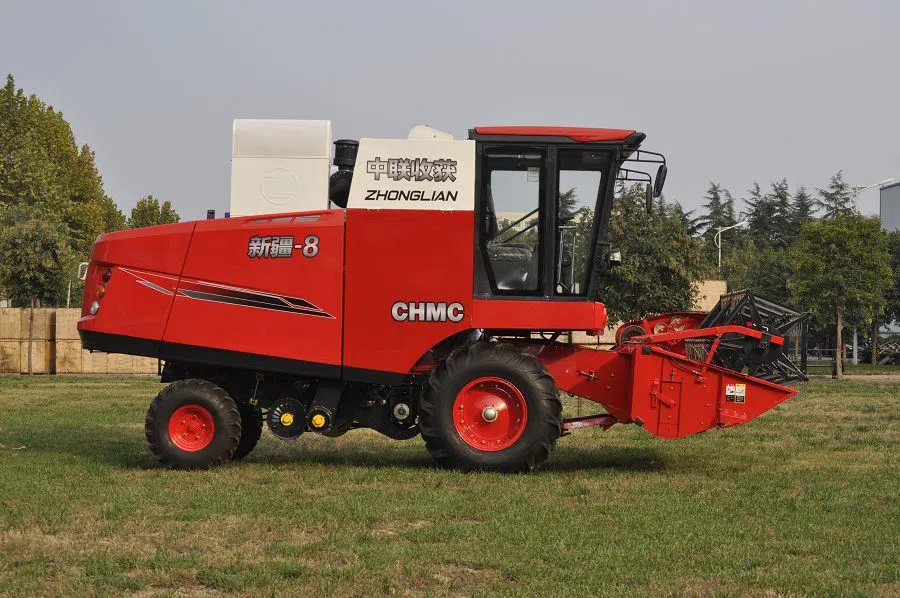

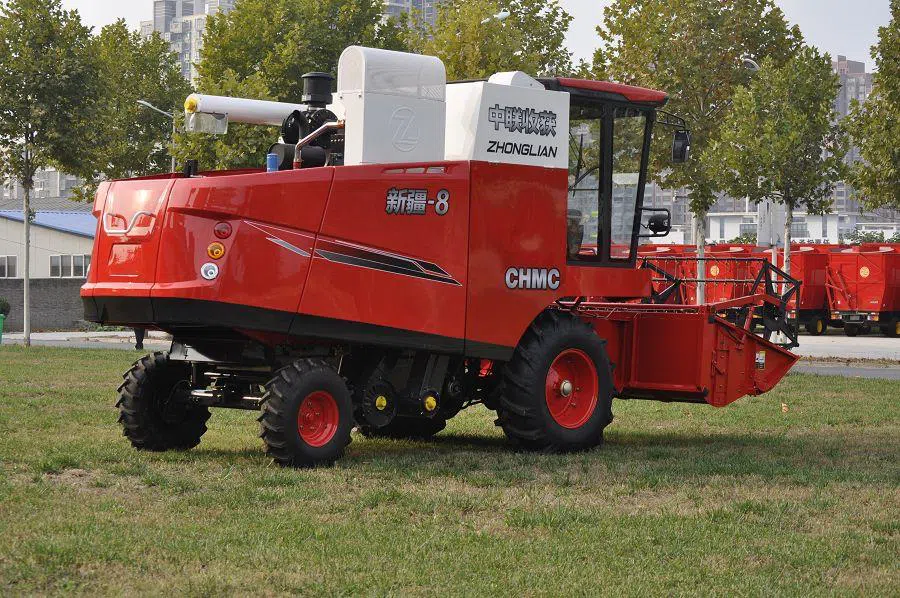

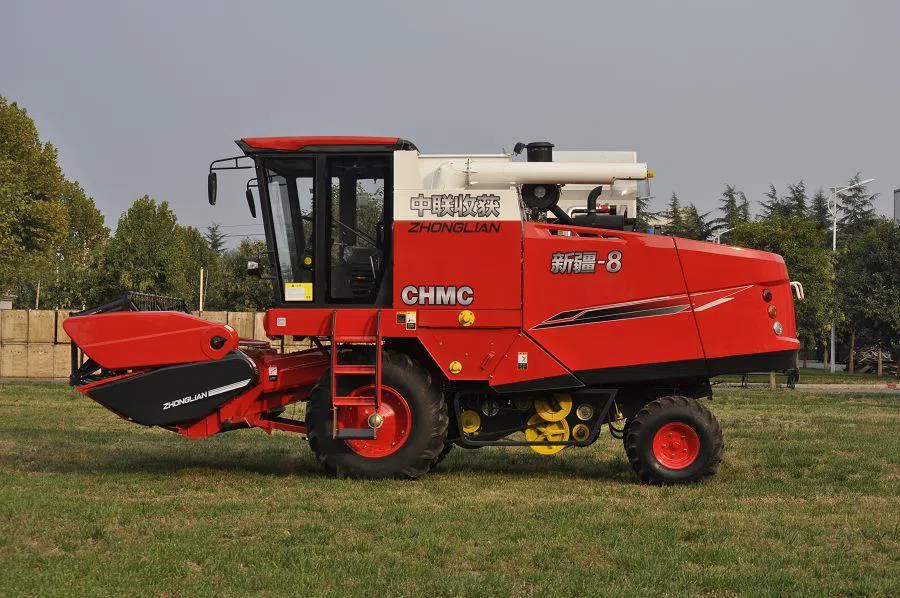

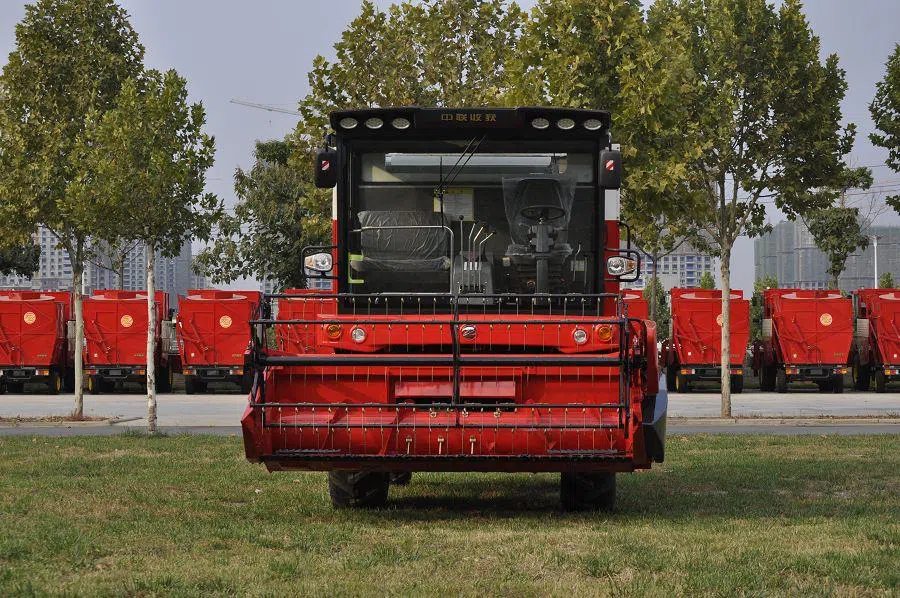

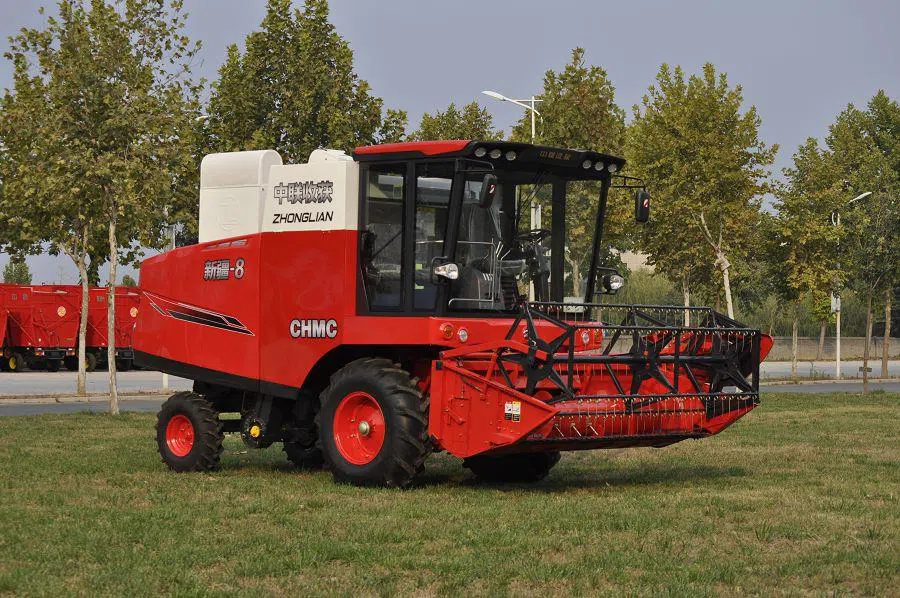

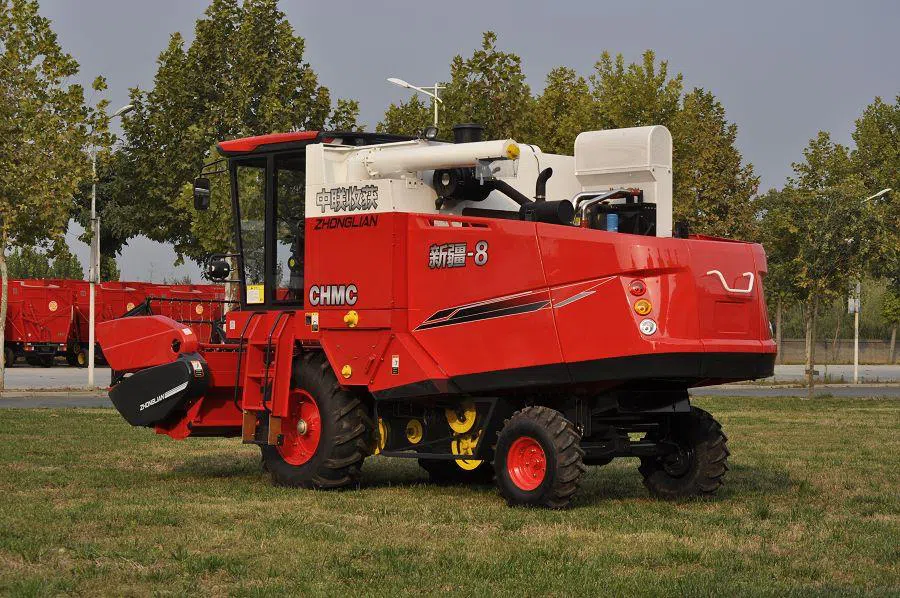

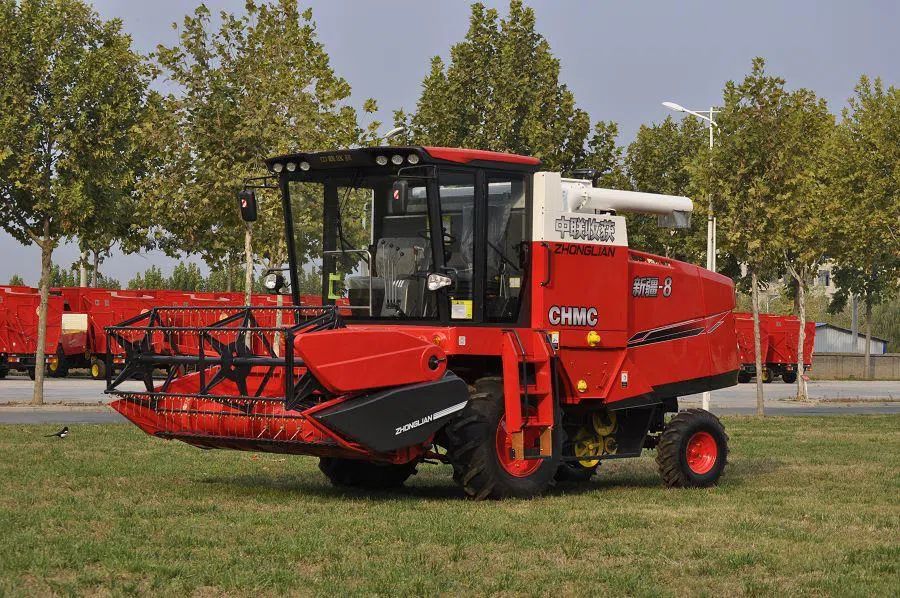

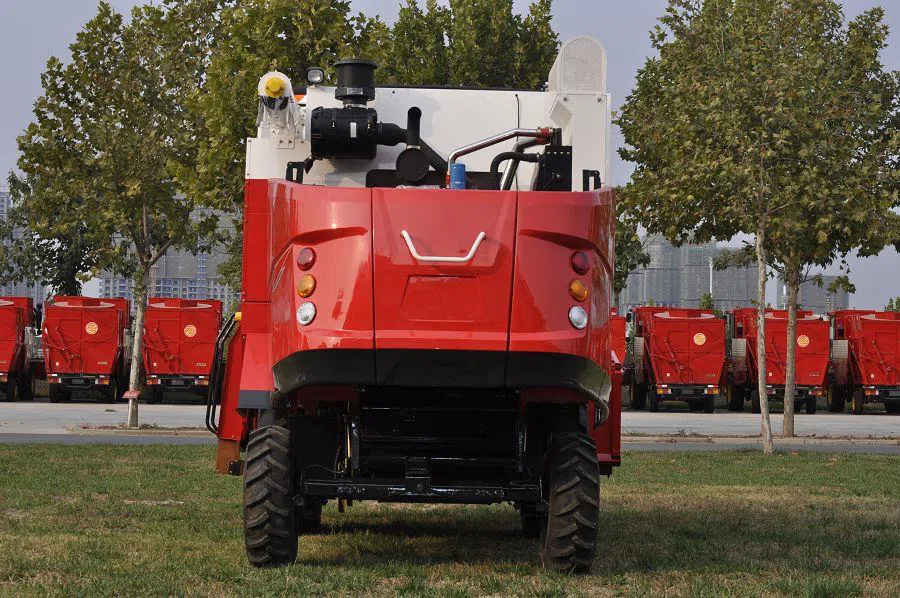

Wheat And Rice Picker
1. Double-layered stepwise sieve for better cleaning, no grass, no chaff.
2. Widen elevator,increase granary, reduce unloading rice times.
3. Configuration with new twisting, high-rib tire, standard grain unloading tube and shear flow and transverse uniaxial flow roller
4.Adopt automatic high-level unloading soybean tank,which is suitable for different soybean transportation vehicles, labor-saving and quickly unloading.
5.With a larger water tank,and a new design radiator cover, to ensure the engine will not be high temperature after a long time working under a harsh environment.
6. Whole machine widened and lengthened,with soybean dedicated flexible cutting table, the harvesting is more efficient and lower loss rate.
7.The cutter is automatic profile modeling float cutter specialized using for harvesting soybean, to ensure that the machine can harvest the lowest bean crop
8. Adopt 175HP engine and new transmission components, powerful and durable.
9.Mainly for soybean harvest,if change the parts,can also be used to harvest soybean,rape,corn seed,etc.
Technical Parameters
Model | self-propelled soybean harvester |
Type | Wheel type |
Wheel | 2 drive wheel, 2 direction wheel |
Size | 6700*3110*3350 mm |
NW | 5405 ;Kg |
Function | Cutting,threshing and collection |
Power | 175HP |
Speed | 2200 r/min |
Style | 4 cycle diesel |
Cutting width | 2680 ;mm |
Feed quantity | 8 ;Kg/s |
Work efficiency | 0.8-1.2 ;hm2/h |
Oil consumption | ≤20 kg/hm2 |
Drive speed | 1.7-22.4 hm/h |
Minimum soybean height from field | 320mm |
Soybean unloading | Mechanical |
Soybean tank | 2000 L |
Fuel tank | 220 L |
Gear box | Mechanical |
Type | Rasp bar |
No. of rasp bars: | 8 |
Cylinder diameter | 550 mm |
Cylinder ;width | 900 mm |
Total loss rate for wheat | ≤1.2% |
Total loss rate for rice | ≤3% |
Breakage rate | ≤1.0% |
Impurity rate | ≤2.0% |
Packaging & Shipping
1.We need to apart some parts from the whole machine,such as the header,cab,peeling machine,tank and so o,than it can load to the container,one 40' high container can loading one set.
2.We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.
After-Sales Service
1.Training how to install and use the machine,engineers available to service machinery overseas.
2.Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.
Wheat And Rice Cutting Machine Parts Details

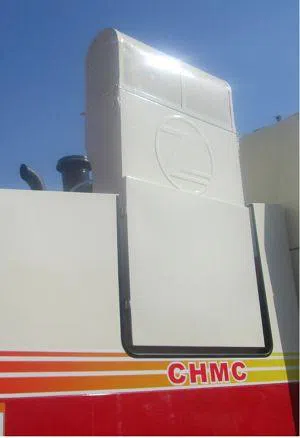

Because the harvester often operates in a high dust concentration environment, a large amount of bran dust can easily block the radiator with the cooling airflow, thereby reducing the heat dissipation efficiency and causing the engine to overheat. Therefore, a dust collector is installed in front of the radiator of this harvester. Its working principle is: Although there is a large amount of bran dust around the engine, there is little bran dust in the upper part of the body, and the less the bran dust is, the more the bran dust is, the higher the air inlet of the machine is at the upper part and the lower part has an openable door. . This air intake system is simple and reliable. |
|
The Cooling And Dust Removal System Has The Following Innovations Based On The Original:
First, not only large radiators and large-diameter fans are used, but also the radiators are dedicated to this machine, which has good flow performance, so the heat dissipation efficiency is significantly improved.
Second, the dust removal system is re-matched to the design, and the comprehensive performance of flow, passage, stiffness, aerodynamics, and sealing has been significantly improved.
