Self-propelled Harvester

Home > Product > Agriculture Equipment > Self-propelled Harvester

self-propelled-grain-harvester

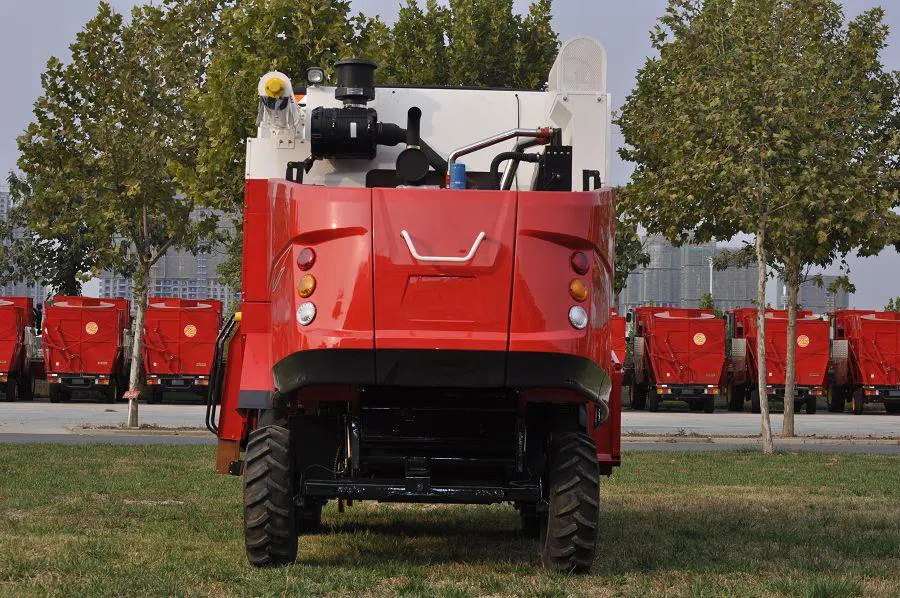

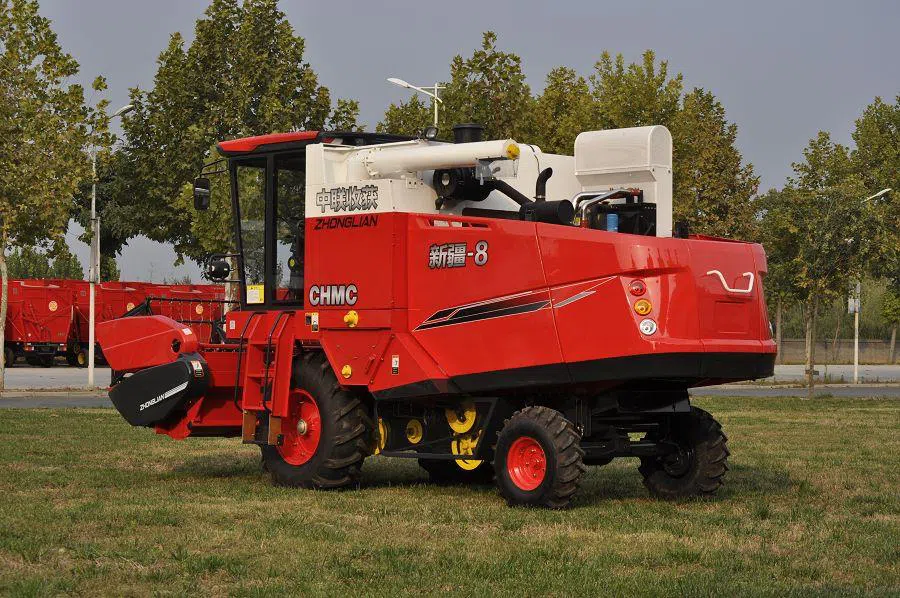

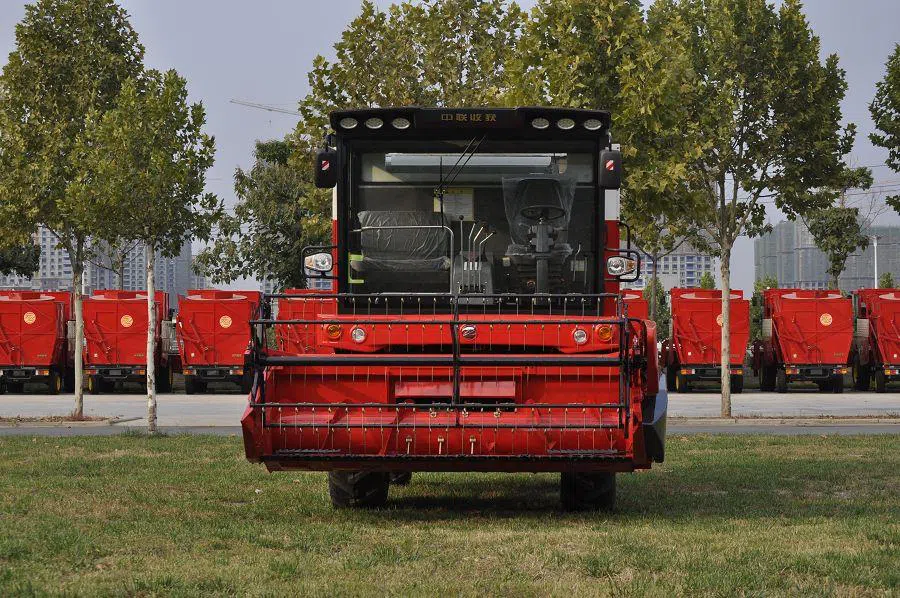

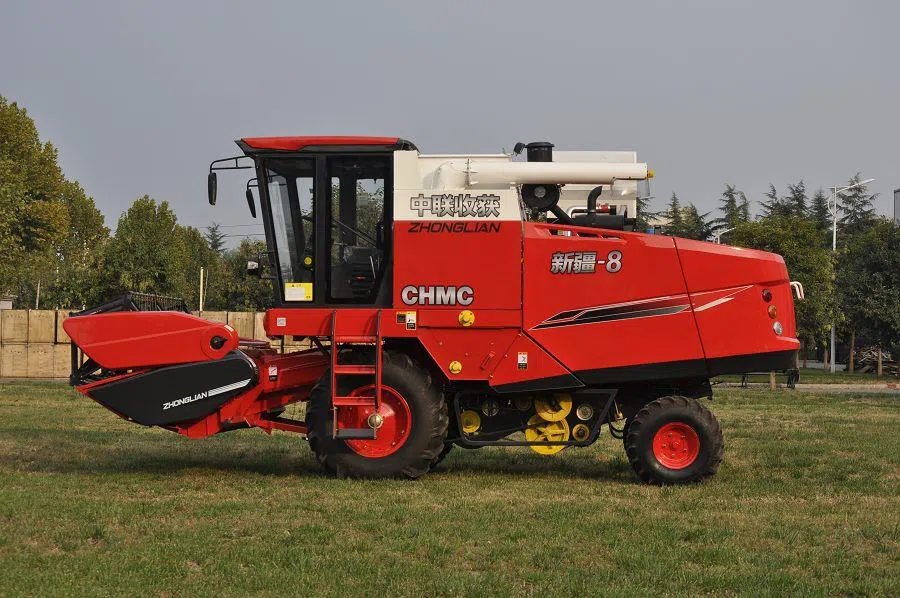

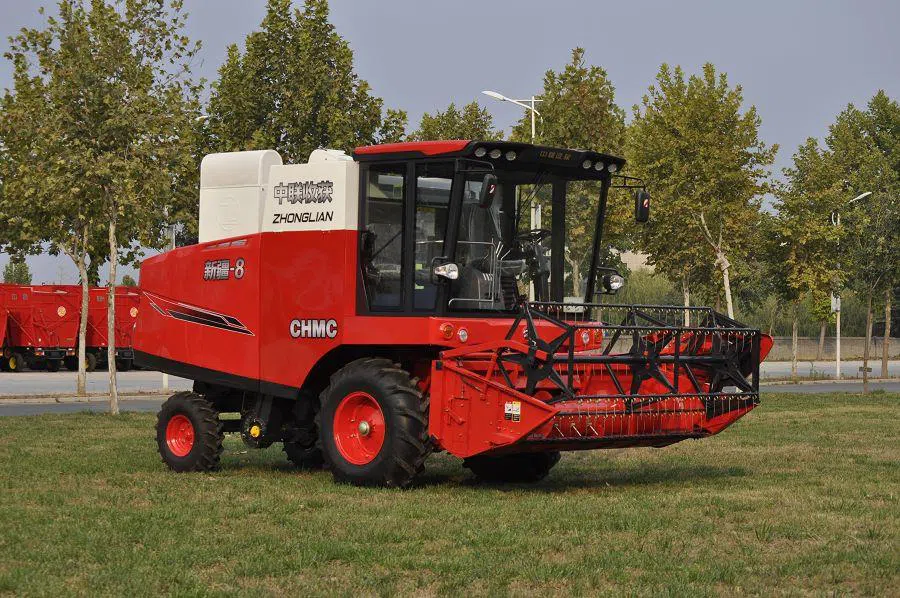

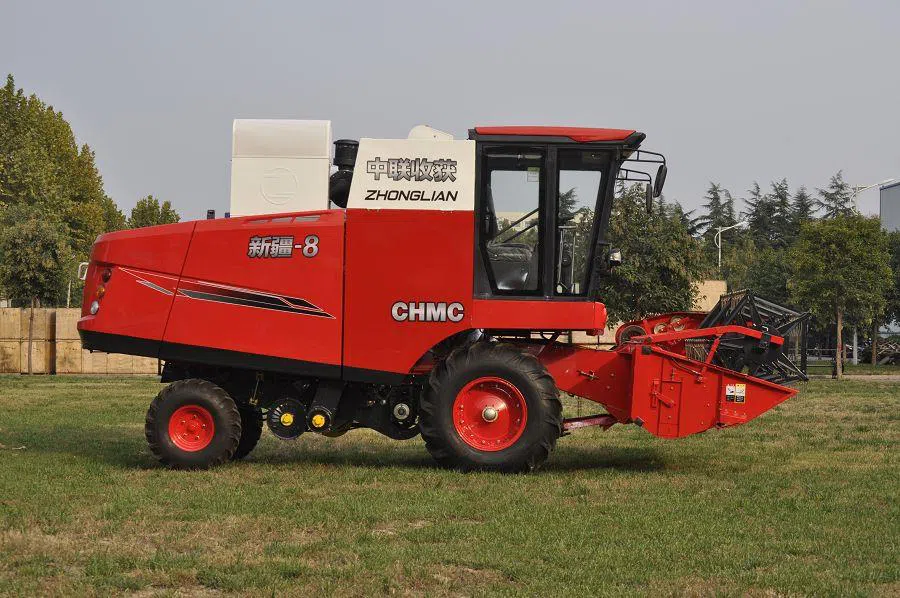

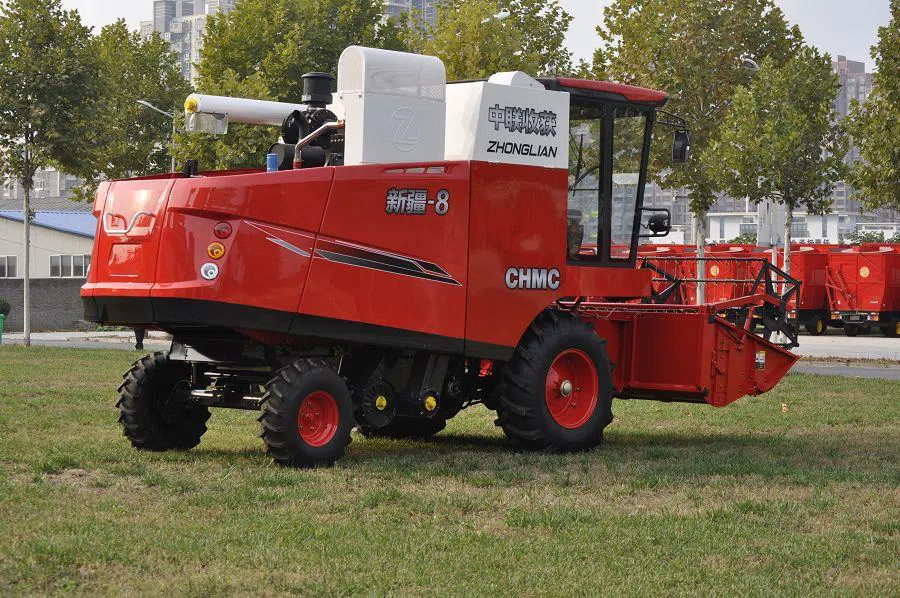

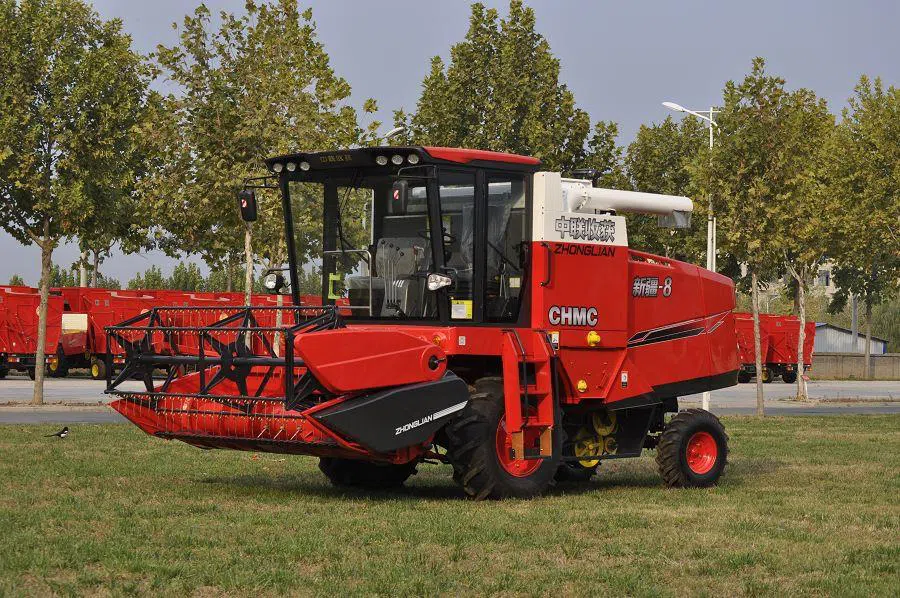

The cutter is automatic profile modeling float cutter specialized using for harvesting soybean, to ensure that the machine can harvest the lowest bean crop

self-propelled-grain-harvester

Grain Digging Machine

1(001)

1. Double-layered stepwise sieve for better cleaning, no grass, no chaff.

2. Widen elevator,increase granary, reduce unloading rice times.

3. Configuration with new twisting, high-rib tire, standard grain unloading tube and shear flow and transverse uniaxial flow roller

4.Adopt automatic high-level unloading soybean tank,which is suitable for different soybean transportation vehicles, labor-saving and quickly unloading.

5.With a larger water tank,and a new design radiator cover, to ensure the engine will not be high temperature after a long time working under a harsh environment.

6. Whole machine widened and lengthened,with soybean dedicated flexible cutting table, the harvesting is more efficient and lower loss rate.

7.The cutter is automatic profile modeling float cutter specialized using for harvesting soybean, to ensure that the machine can harvest the lowest bean crop

2(001)


Technical parameters


Model

self-propelled Grain  harvester

Type

Wheel type

Wheel

2 drive wheel, 2 direction wheel

Size

6700*3110*3350 mm

NW

5405 Kg

Function

Cutting,threshing and collection

Power

175HP

Speed

2200 r/min

Style

4 cycle diesel

Cutting width

2680 mm

Feed quantity

8 Kg/s

Work efficiency

0.8-1.2 hm2/h

Oil consumption

≤20 kg/hm2

Drive speed

1.7-22.4 hm/h

Minimum soybean height from field

320mm

Soybean unloading

Mechanical

Soybean tank

2000 L

Fuel tank

220 L

Gear box

Mechanical

Type

Rasp bar

No. of rasp bars:

8

Cylinder diameter

550 mm

Cylinder width

900 mm

Total loss rate for wheat

≤1.2%

Total loss rate for rice

≤3%

Breakage rate

≤1.0%

Impurity rate

≤2.0%



Packaging & Shipping

1.We need to apart some parts from the whole machine,such as the header,cab,peeling machine,tank and so o,than it can load to the container,one 40' high container can loading one set.

2.We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.

3(001)


After-Sales Service

1.Training how to install and use the machine,engineers available to service machinery overseas.

2.Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.

4(001)



Wheat And Rice Cutting Machine Parts Details


self-propelled-grain-harvester(图5)


self-propelled-grain-harvester(图6)


self-propelled-grain-harvester(图7)


self-propelled-grain-harvester(图8)


Common Failures Of Header Systems And Troubleshooting Methods



Common Faults

Cause Of Faults

Troubleshooting Method

Cutter blocked

    1. Encounter hard objects such as stones, sticks, steel wires;
     2. The cutting gap between the moving and fixed blades is too large, which causes the grass to be blocked.
     3. Damaged blades or blade guards;
     4. The stubble is low due to the low stalks of the crop, so that the blades have soil.

     1. Stop immediately to remove hard objects;
     2. Adjust the blade clearance;
     3. Replace the blades and sharpen the blade guard, or replace the blade guard;
     4. Raise header height and clear soil.

Stacked crops on harvesting cutter bar

    1. The gap between the header auger and the bottom of the header is too large;
     2. The stalk is too short , the reel is too high or too forward;
     3. The reel speed is too low;
     4. Crop short and thin

     1. Adjust the gap as required;
     2. Lower or move the reel to minimize stubble;
     3. Increase the revolver speed;
     4. Increase machine forward speed

Crops cannot be fed overhead on the header auger

     1. The forward speed of the machine is too high;
     2. The reel nails position is incorrect;
     3. The reel is too far away from the feed auger

     1. Reduce the forward speed of the machine;
     2. Adjust the front telescopic position forward and upward;
     3. Move the reel backward

Reel hits too many grains

     1. The revolver speed is too high, and the number of hits is high;
     2. The reel is positioned forward, with high strike intensity;
     3. The reel is on the high side, hitting spikes

     1. Reduce the reel speed;
     2. Move the reel position back;
     3. Lower the reel height

Reel turning the grass

1. The reel position is too low;
     2. The spring tooth of the reel lean back;
     3. The reel position is too far behind

     1. Raise the reel position;
     2. Adjust the angle of the reel tooth according to requirements;
     3. Reel position moved forward

Reel shaft stuck in grass

     1. Crops are in disorder;
     2. Crop stalks are too high and too wet

     1. Stop and remove weeds in time;
     2. Properly raise the reel position

The crop is dumped forward

     1. The forward speed of the machine is too high;
     2. The reel speed is too low;
     3. Soil on the cutter;
     4. Moving knife cutting speed is too low

    1. Reduce the forward speed of the machine;
     2. Increase the reel speed;
     3. Clear the soil on the cutter;
     4. Check and adjust the tension of the pendulum ring box transmission belt
