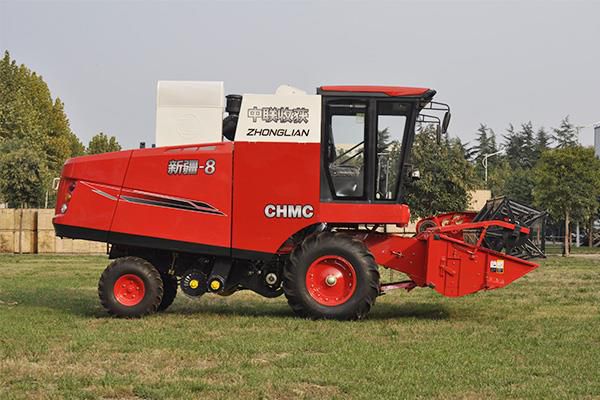

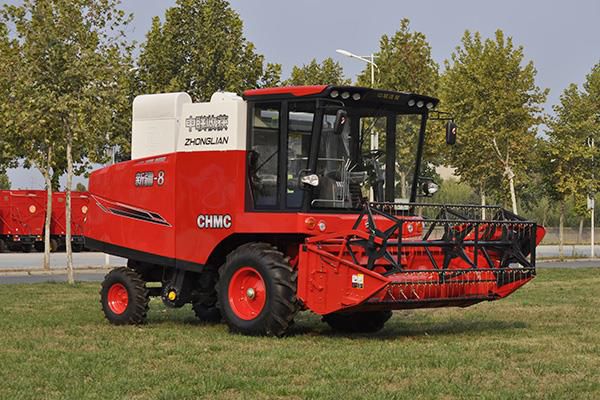

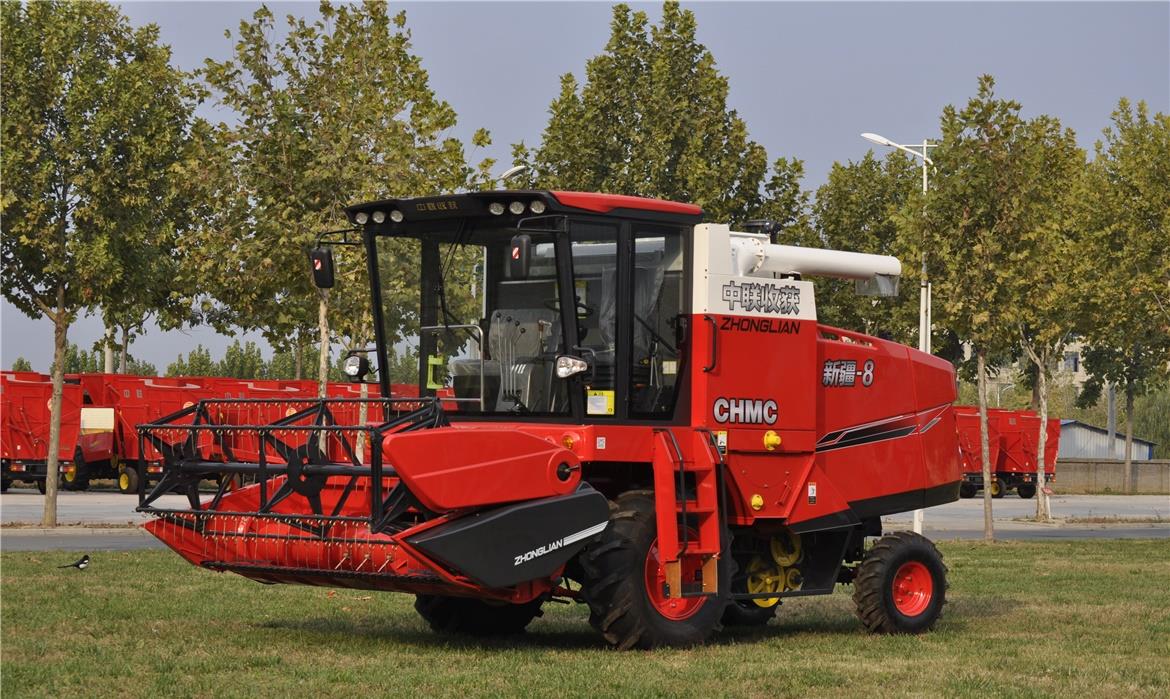

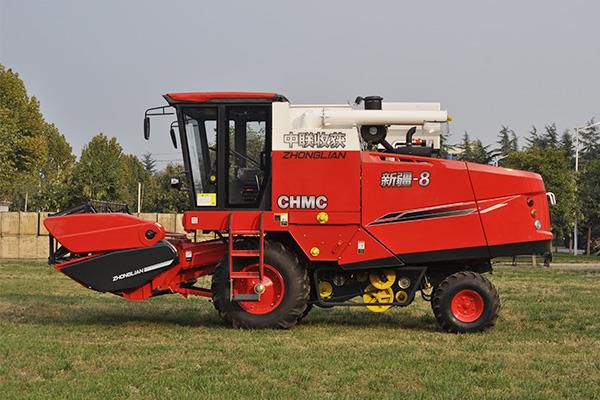

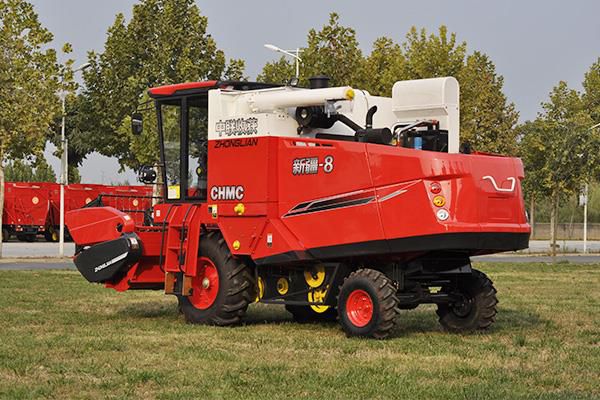

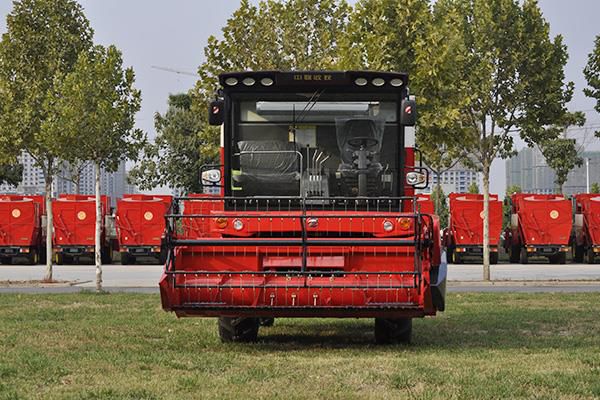

Self-propelled Soybean Harvester

Whole machine widened and lengthened,with soybean dedicated flexible cutting table, the harvesting is more efficient and lower loss rate.

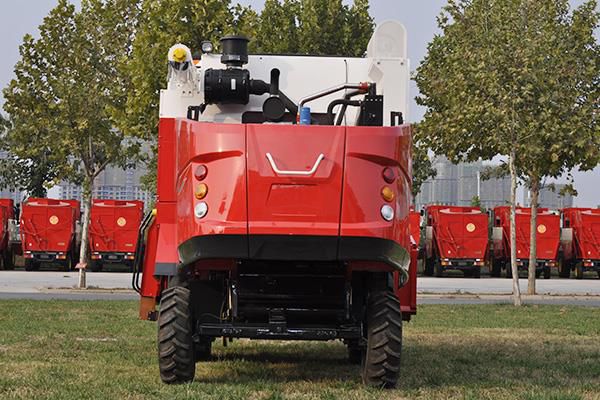

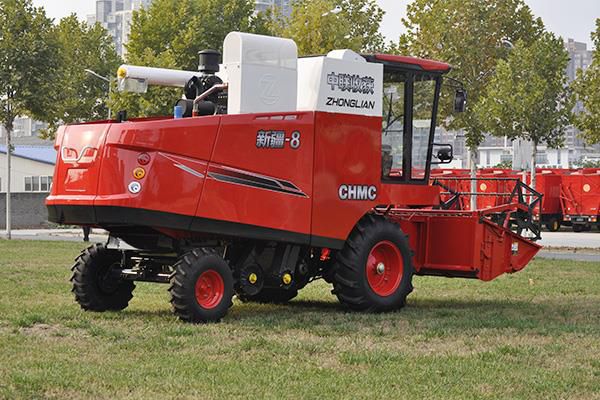

Self-propelled Soybean Harvester

Self-Propelled Soybean Harvester

1. Double-layered stepwise sieve for better cleaning, no grass, no chaff.

2. Widen elevator,increase granary, reduce unloading rice times.

3. Configuration with new twisting, high-rib tire, standard grain unloading tube and shear flow and transverse uniaxial flow roller

4. Adopt automatic high-level unloading soybean tank,which is suitable for different soybean transportation vehicles, labor-saving and quickly unloading.

5. With a larger water tank,and a new design radiator cover, to ensure the engine will not be high temperature after a long time working under a harsh environment.

6. Whole machine widened and lengthened,with soybean dedicated flexible cutting table, the harvesting is more efficient and lower loss rate.

7.The cutter is automatic profile modeling float cutter specialized using for harvesting soybean, to ensure that the machine can harvest the lowest bean crop

8. Adopt 175HP engine and new transmission components, powerful and durable.

9. Mainly for soybean harvest,if change the parts,can also be used to harvest soybean,rape,corn seed,etc.,

Packaging & Shipping

1. We need to apart some parts from the whole machine,such as the header,cab,peeling machine,tank and so on,then it can load to the container,one 40' high container can loading one set.

2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.

After-Sales Service

1. Training how to install and use the machine,engineers available to service machinery overseas.

2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.

Self-Propelled Soybean Harvester Parts Details

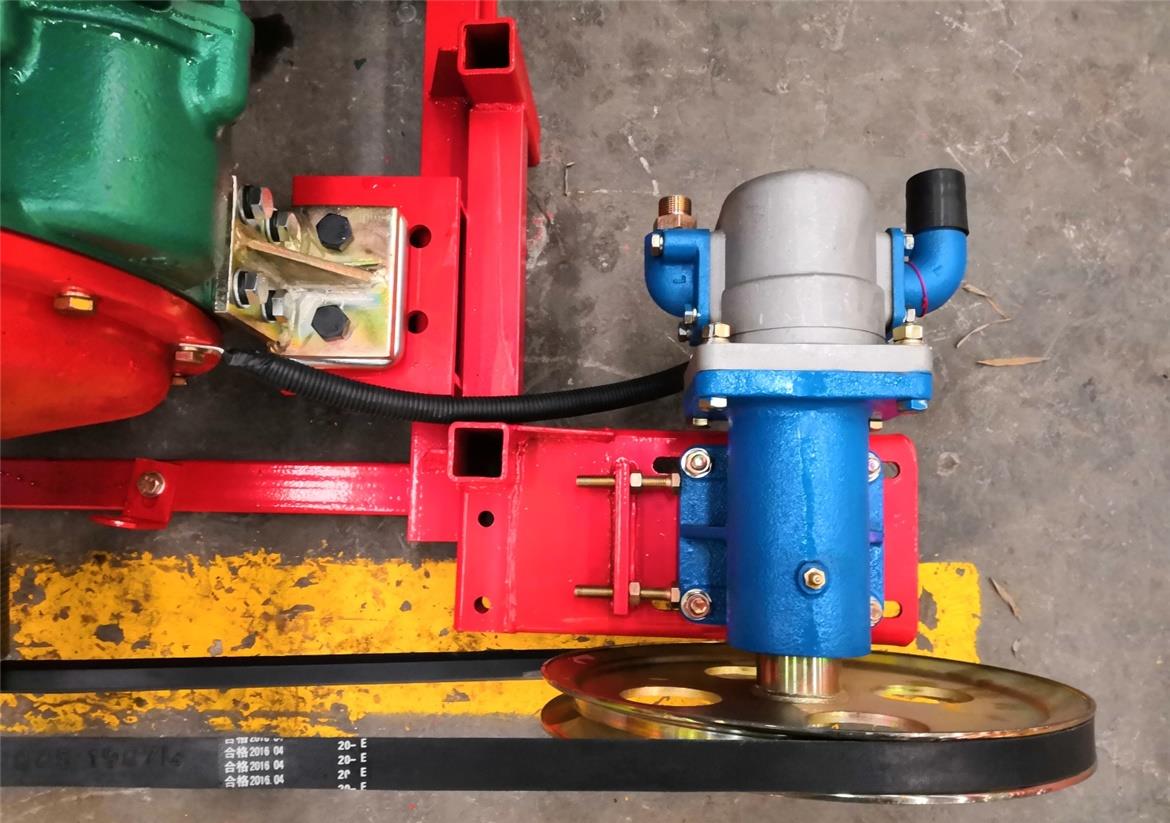

Hydraulic Oil Pump Belt Tension

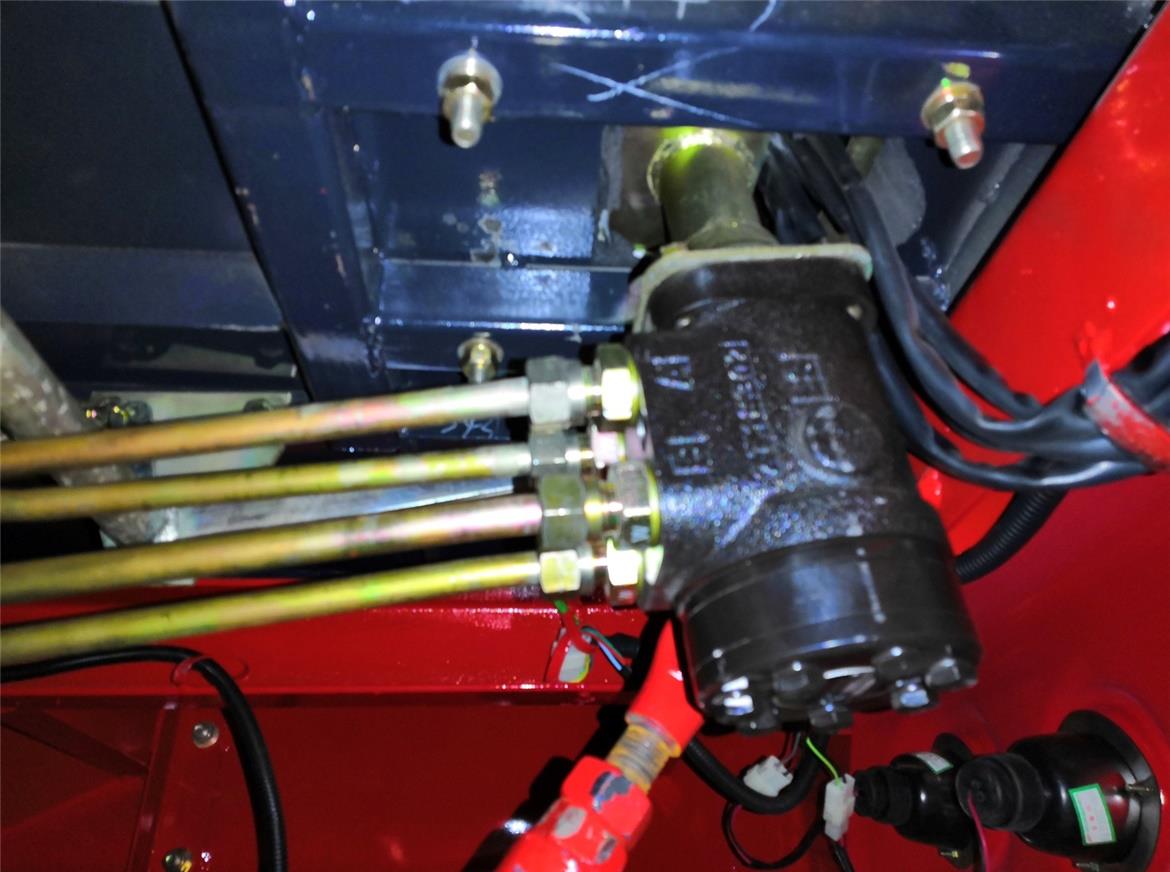

Steering Valve



Technical Parameters:


self-propelled soybean harvester


Wheel type


2 drive wheel, 2 direction wheel


6700*3110*3350 mm


5405 Kg


Cutting,threshing and collection




2200 r/min


4 cycle diesel

Cutting width

2680 mm

Feed quantity

8 Kg/s

Work efficiency

0.8-1.2 hm2/h

Oil consumption

≤20 kg/hm2

Drive speed

1.7-22.4 hm/h

Minimum soybean height from field


Soybean unloading


Soybean tank

2000 L

Fuel tank

220 L

Gear box



Rasp bar

No. of rasp bars:


Cylinder diameter

550 mm

Cylinder width

900 mm

Total loss rate for wheat


Total loss rate for rice


Breakage rate


Impurity rate
