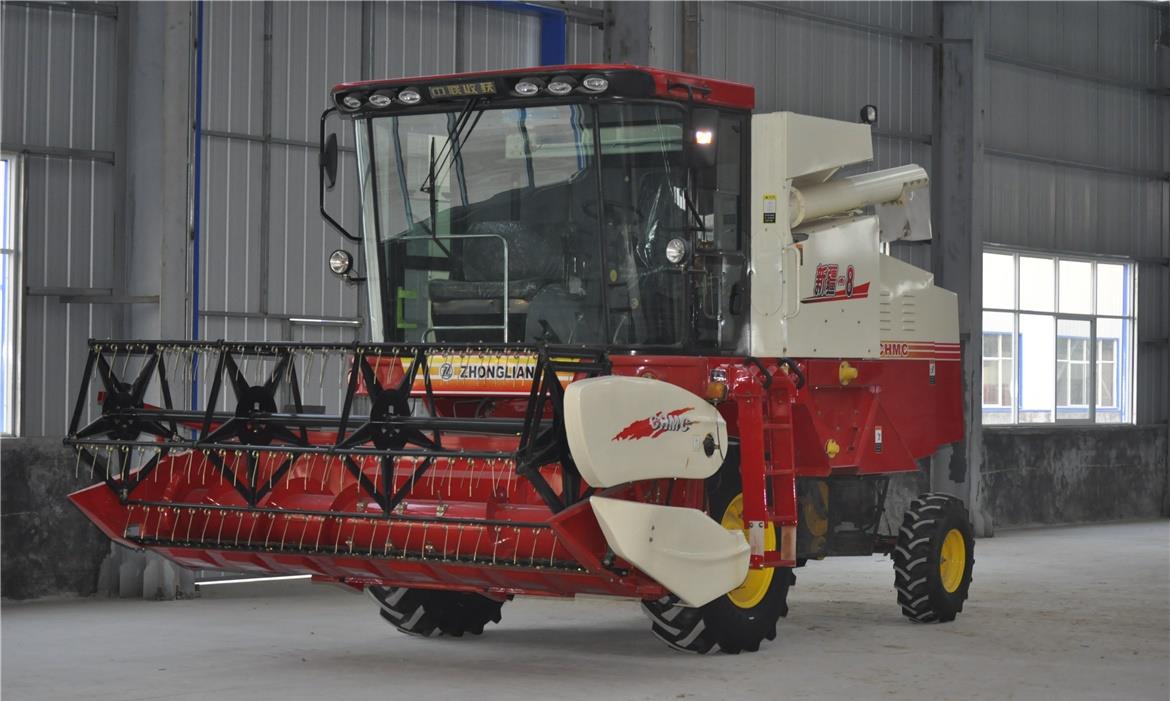

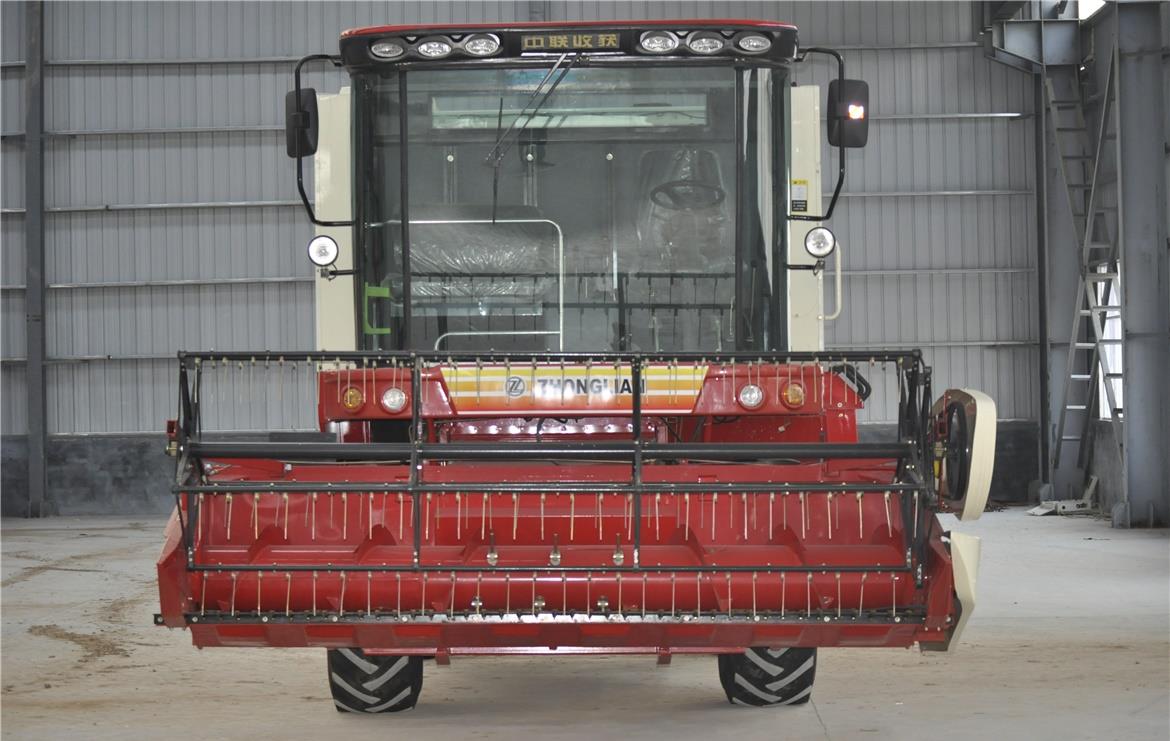

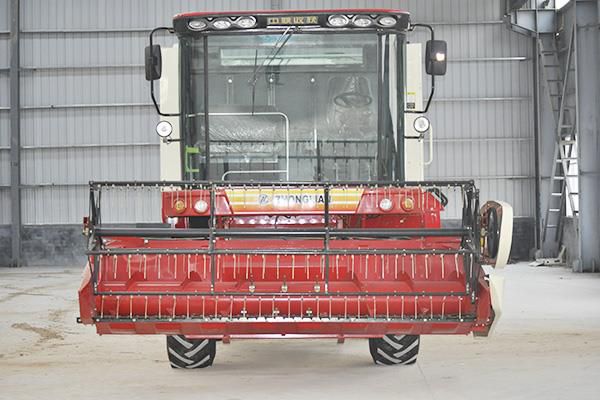

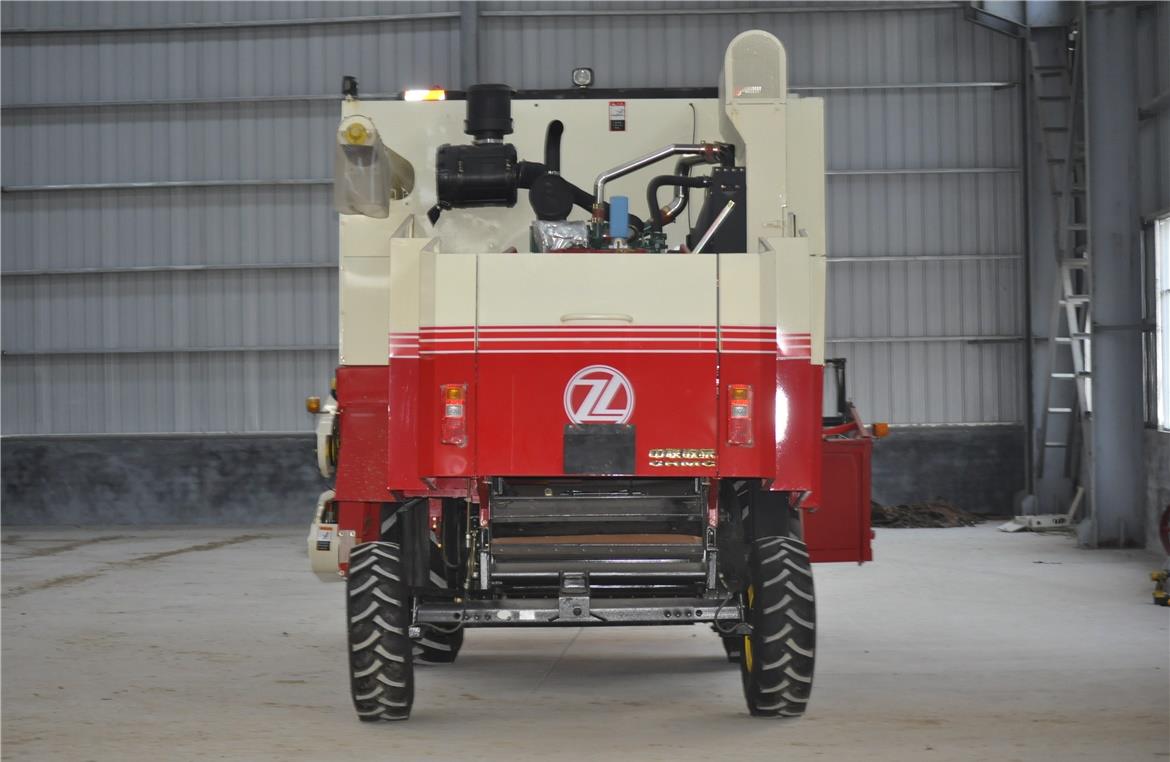

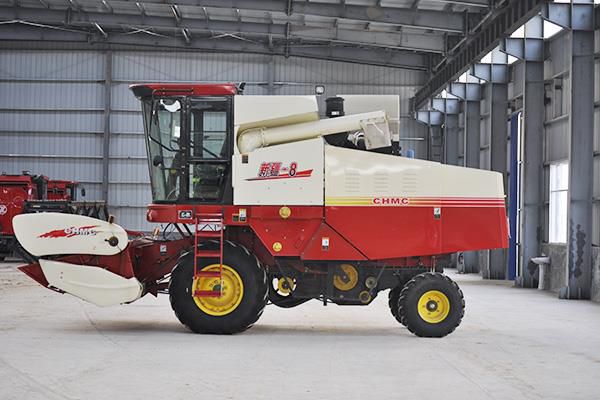

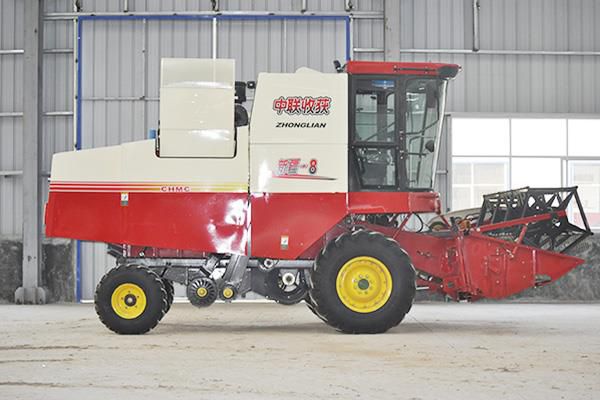

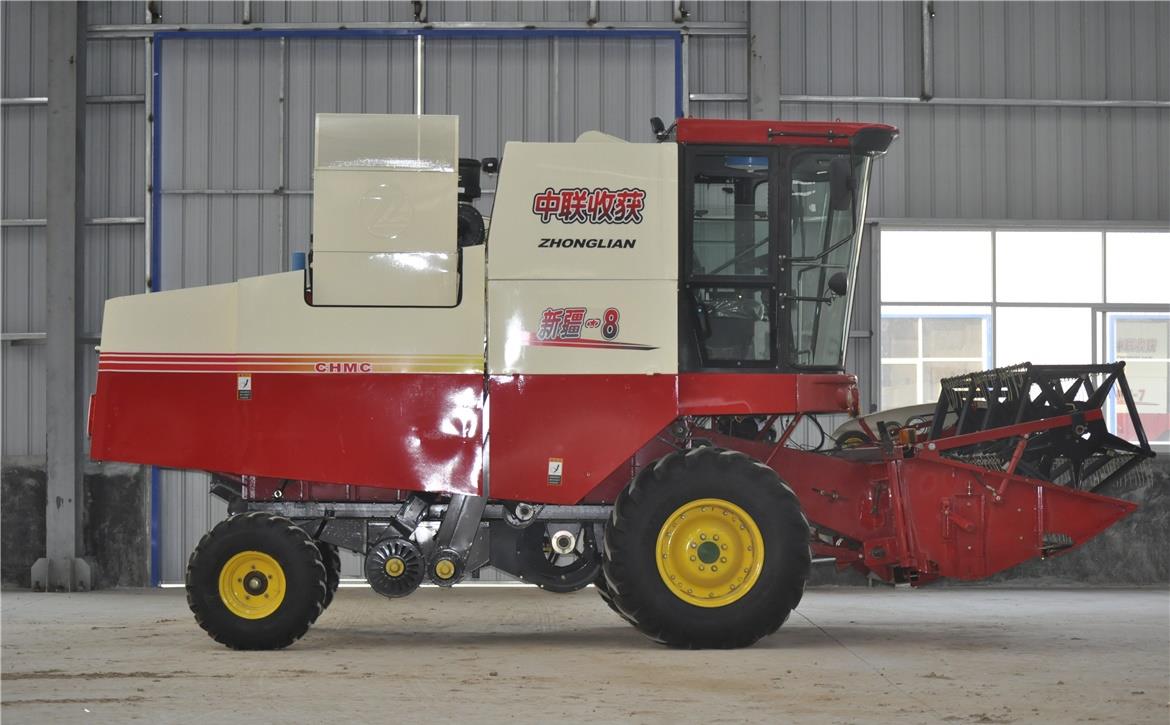

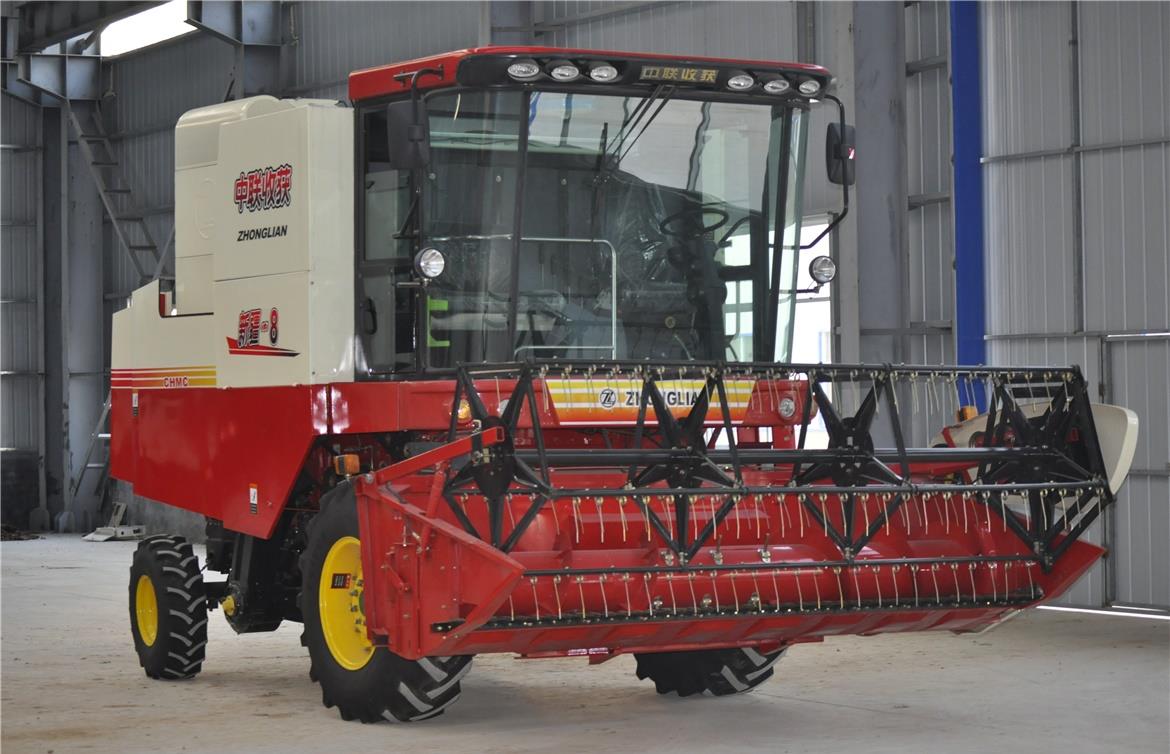

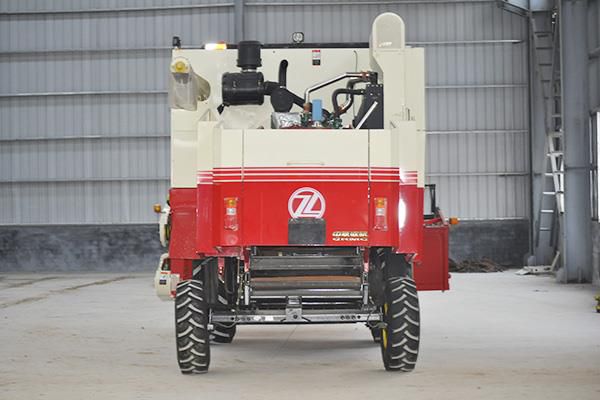

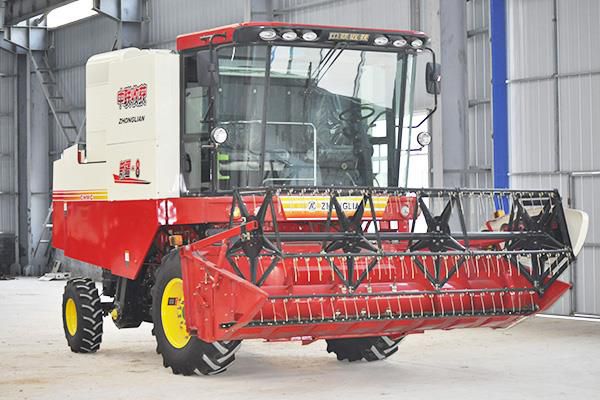

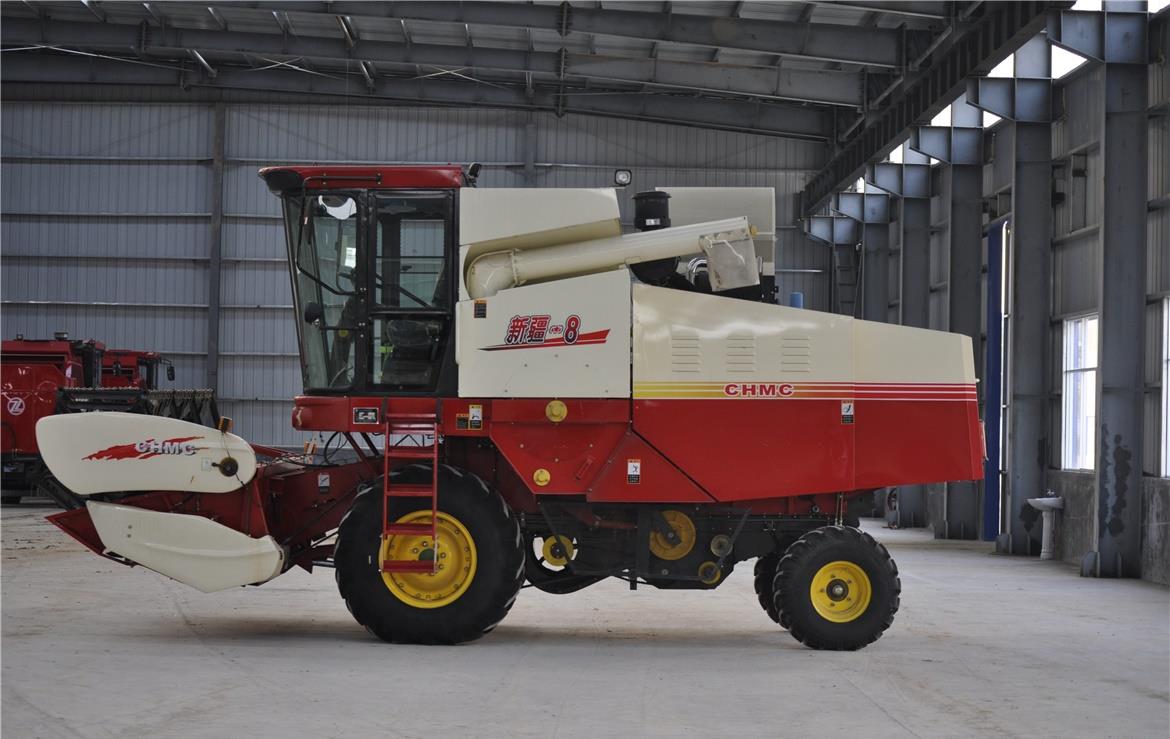

Self-propelled Rice Harvester

Self-Propelled Rice Harvester

1. Double-layered stepwise sieve for better cleaning, no grass, no chaff,low loss rate.

2. Widen elevator,increase granary, reduce unloading rice times.

3. Sealed cab, reduce the noise, make the driver feel more comfortable, Reserve a termination to connect air conditioner or fan.

4. Adopt automatic high-level unloading grain tank,which is suitable for different grain transportation vehicles, labor-saving and quickly unloading.

5. With a larger water tank,and a new design radiator cover, to ensure the engine will not be high temperature after a long time working under a harsh environment.

6. Adopt 160HP engine and new transmission components, powerful and durable.

7. Enlarge the threshing cabin , lengthen the threshing drum, increase large feeding quantity,high production efficiency.

FAQ:

Q1. How long is the delivery date?

A: In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.

Q2: How can I visit your factory?

A:We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient

Q3: What's your main products?

A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.

Q4: What is your terms of payment?

A: T/T, L/C, Paypal,Western Union

Q5: How is the quality of the harvesrter?

A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.

Packaging & Shipping

1. We need to apart some parts from the whole machine,such as the header,cab,peeling machine,tank and so on,then it can load to the container,one 40' high container can loading one set.

2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.

After-Sales Service

1. Training how to install and use the machine,engineers available to service machinery overseas.

2. Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

3. Timely response to customers’ problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer’s satisfactory.

Self-Propelled Rice Harvester Parts Details

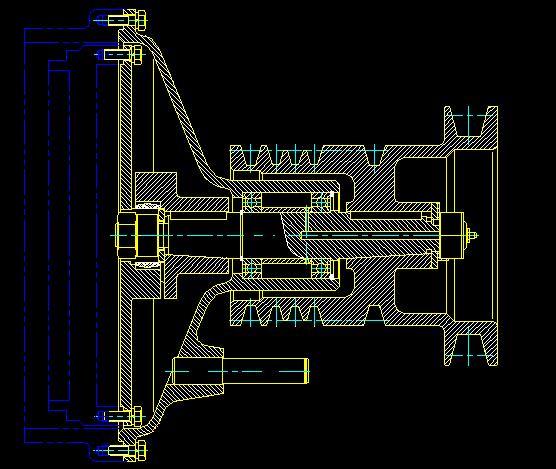

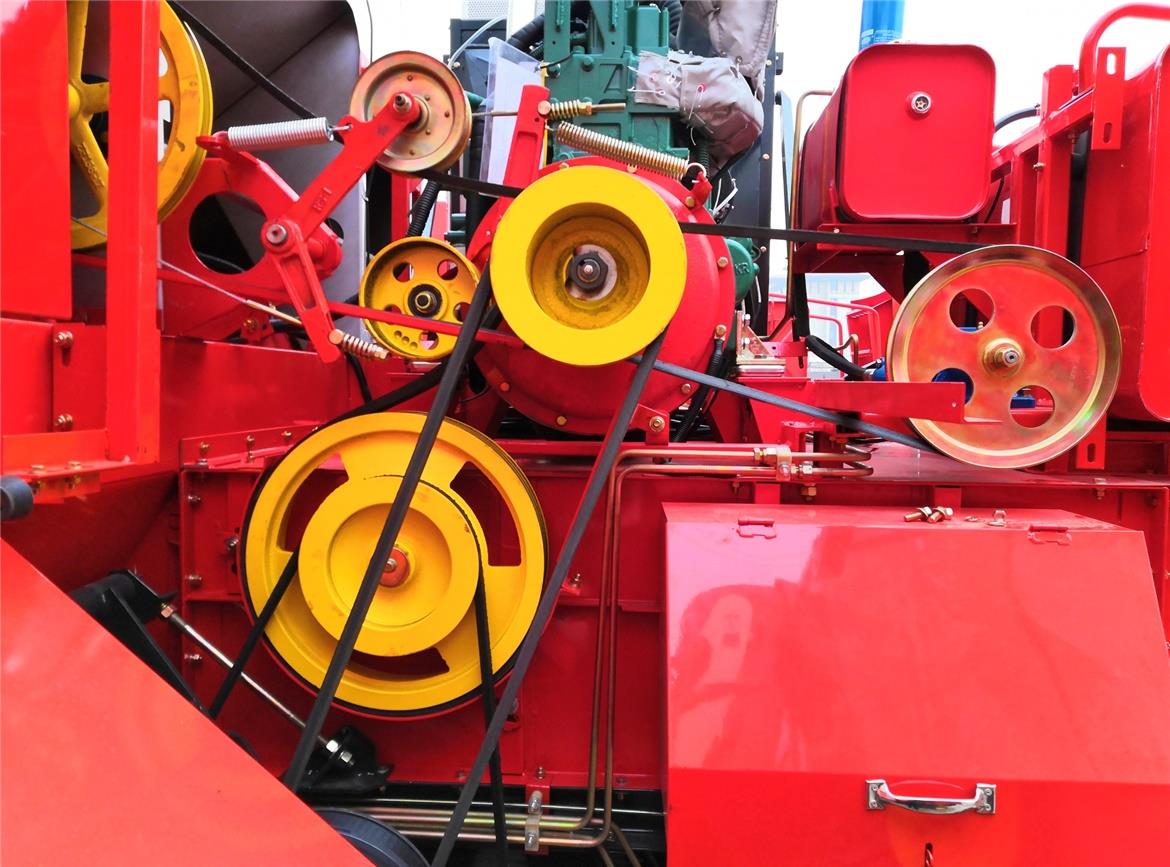

Power Output Characteristics

The MT5C plum flexible coupling is used between the power output shaft and the engine flywheel. The coupling has the advantages of soft transmission torque, strong radial, axial and angular error compensation ability for the manufacture and installation of related components, large torque reserve coefficient, long service life and convenient assembly and disassembly.

In use, it is possible to feel the elastic member being severely worn, plastically deformed or damaged by twisting the power take-off pulley by hand when the engine is stopped. Generally, when the torsion is idling, the outer edge of the pulley is idling within 8 mm, and the elastic member is considered to be working normally.

It must be tightened when installing the double nut, and the tightening torque is not less than 260N.m.

Unloading Grain

The unloading of grain is achieved by the driver through the unloading of the grain clutch lever, and the lower pressure is engaged and lifted.

Separation.

Adjustment method: the same as the adjustment method and data of the pressure of the main clutch tensioner .

Technical Parameters:
