Wheel-typed Paddy Harvester

With a larger water tank, and a new design radiator cover, to ensure the engine will not be high temperature after a long time working under a harsh environment.

Wheel-typed Paddy Harvester

Wheel-Typed Paddy Harvester

1. Widen elevator, increase granary, reduce unloading rice times.

2. Double-layered stepwise sieve for better cleaning, no grass, no chaff.

3. Adopt 175HP engine and new transmission components, powerful and durable.

4. Sealed cab, reduce the noise, make the driver feel more comfortable, Reserve a termination to connect air conditioner or fan.

5. Mainly for grain harvest, if change the parts, can also be used to harvest soybean, rape, corn seed, etc.,

6. With a larger water tank, and a new design radiator cover, to ensure the engine will not be high temperature after a long time working under a harsh environment.


Parts Details:


1 2


Function:

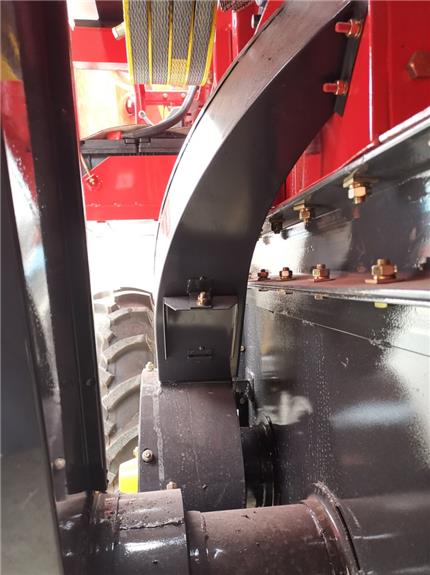

The unremoved residual spikes that are sieved by the residual sieve (mainly the tail sieve) are pushed to the volute of the retort by the agitated auger, and then thrown back to the clearing sieve for cleaning. And can play the role of overload safety protection.

Working principle: When working, the centrifugal force generated by the high-speed rotary impeller is used to form a strong impact and flaw on the raft, and then threshed and thrown into the cleaning chamber.


3


After a period of use, the scraper chain will be elongated, and the tightness of the elevator chain should be adjusted in time. Method: Open the bottom view port of the elevator, and pull the elevator chain by hand, so that the chain can move about 5 mm radially relative to the sprocket, or the blade can be tilted by 30 degrees by hand. . There is no collision sound when the main engine is running normally. In general, the tension of the elevator chain can be adjusted by the left and right adjustment bolts on the upper end of the elevator. If the chain is too tight or too loose, the chain connector needs to be added or removed.


FAQ:

Q1: What's your main products?

A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.


Q2: What is your terms of payment?

A: T/T, L/C, Paypal,Western Union


Q3: How is the quality of the harvesrter?

A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.


Technical Parameters:

Model

Wheel-typed paddy harvester

Type

Wheel type

Wheel

2 drive wheel, 2 direction wheel

Size

6700*3110*3350 mm

NW

5405 Kg

Function

Cutting, threshing and collection

Model

YC4A175-T300

Power

175HP

Speed

2200 r/min

Style

4 cycle diesel

Cutting width

2680 mm

Feed quantity

8 Kg/s

Work efficiency

0.8-1.2 hm2/h

Oil consumption

≤20 kg/hm2

Drive speed

1.7-22.4 hm/h

Minimum grain height from field

320mm

Grain unloading

Mechanical

Grain tank

2000 L

Fuel tank

220 L

Gear box

Mechanical

Type

Rasp bar

No. of rasp bars:

8

Cylinder diameter

550 mm

Cylinder width

900 mm

Total loss rate for wheat

≤1.2%

Total loss rate for rice

≤3%

Breakage rate

≤1.0%

Impurity rate

≤2.0%
