Wheel-Typed Harvester

Home > Product > Agriculture Equipment > Wheel-Typed Harvester

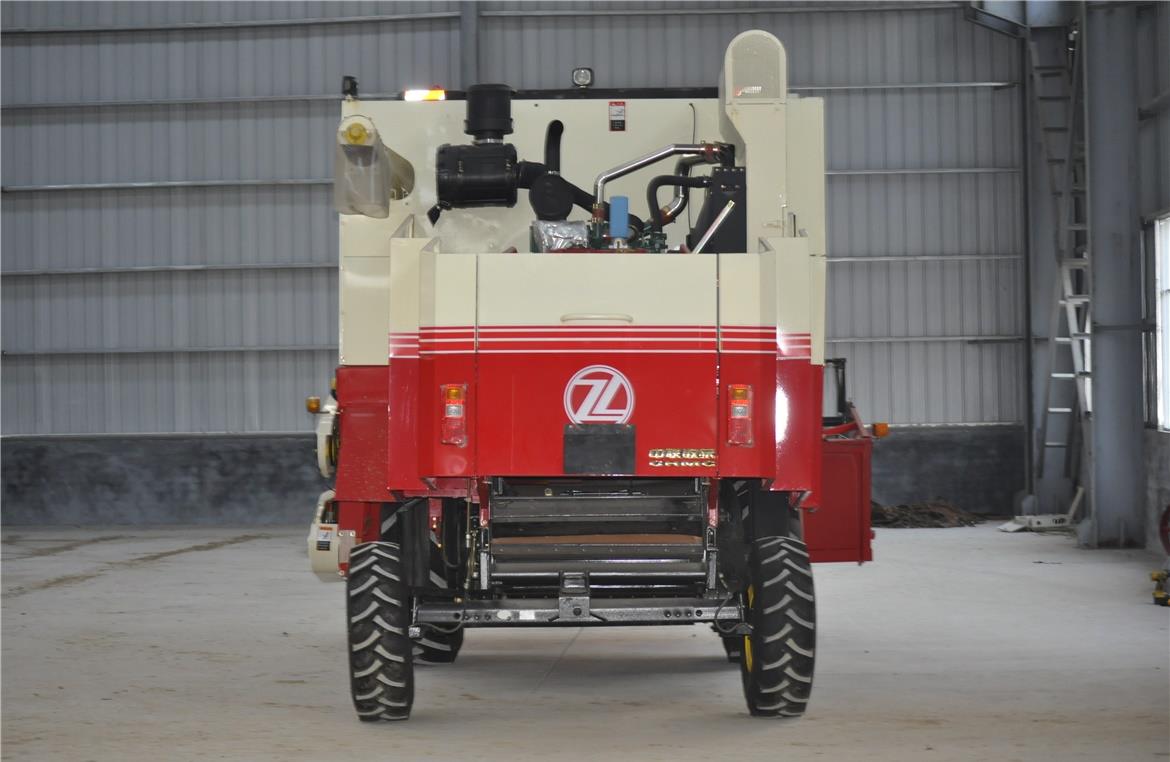

Wheel-typed Wheat Harvester

With a larger water tank, and a new design radiator cover, to ensure the engine will not be high temperature after a long time working under a harsh environment.

Wheel-typed Wheat Harvester

Wheel-Typed Wheat Harvester

1. Sealed cab, reduce the noise, make the driver feel more comfortable, Reserve a termination to connect air conditioner or fan.
2. Mainly for grain harvest, if change the parts, can also be used to harvest soybean, rape, corn seed, etc.,

3. Widen elevator, increase granary, reduce unloading rice times.

4. Adopt 175HP engine and new transmission components, powerful and durable.

5. Double-layered stepwise sieve for better cleaning, no grass, no chaff.

6. With a larger water tank, and a new design radiator cover, to ensure the engine will not be high temperature after a long time working under a harsh environment.

Parts Details:


1. When the cutter is in the two extreme positions of the reciprocating motion, the center line of the moving blade should be the edge guard

The center line coincides by adjusting the relative position of the cutter head and the cutter bar.

2. The upper working faces of all blade protectors should be in the same plane, with a height difference of no more than 0.5 mm.

3. The arbor of the moving knife should be kept straight and the straightness is not more than 0.5 mm.

4. The front and rear clearance of the arbor in the edge guard is not more than 0.8 mm.

5. The lower working surface of the moving blade and the upper working surface of the blade should be fitted. The gap between the front end of the moving blade should be no more than 0.5 mm, and the back clearance should be no more than 1.5 mm.



The harvested crops are transported by spiral blades to the bridge feed inlet, which is then transferred to the bridge by the telescopic rack.


Q1: What is your terms of payment?

A: T/T, L/C, Paypal,Western Union

Q2: How is the quality of the harvesrter?

A: We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.

Q3: Packaging & Shipping

1. We need to apart some parts from the whole machine,such as the header,cab,peeling machine,tank and so on,then it can load to the container,one 40' high container can loading one set.

2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.

Technical Parameters:


Wheel-typed wheat harvester


Wheel Type


2 drive wheel, 2 direction wheel


6640*3600*3430 mm


6260 Kg


Cutting, threshing and collection






2200 r/min


4 cycle diesel

Cutting width

3270 mm

Feed quantity


Work efficiency

0.8-1.2 hm²/h

Oil consumption

≤20 kg/hm²

Minimum grain height from field


Grain unloading


Grain tank

2000 L

Fuel tank

220 L

Gear box



Rasp bar

No. of rasp bars:


Cylinder diameter

550 mm

Cylinder width

1020 mm

Total loss rate for wheat


Total loss rate for rice


Breakage rate


Impurity rate
