Small Peanut Combine Harvester

The small peanut combine harvester is mainly used for peanut harvesting or drying harvesting after unearthed.

Small Peanut Combine Harvester


The small peanut combine harvester is mainly used for peanut harvesting or drying harvesting after unearthed. Completing peanut gathering, picking out, fruit vine separating and into the tank respectively at same time; with small peanut combine harvester strong performance, compact structure, easy operation, durable safety, the machine adapts to all the land that small peanut combine harvester can work.

1. The new hydraulic control is operated, the mobile phone charger and hands washing sink are added, to make the driving comfort is more humanized.

2. According to the user's needs, optional rear brake steering axle; optional mechanical rear drive; optional hydraulic rear drive; more adaptable.

3. Sealed cab, this reduce the noise, make the driver feel more comfortable.

4. It adopts D3.5 type large clutch gearbox, which is reliable and durable. It has long clutch arm to save energy.

5. Clods cleaning adapts airflow pattern to prevent clogging and reduce the rate of broken peanut fruit.

6. The machine has two tanks, one tank for the peanut, the other tank for the peanut stalk which will be crushed as forage.

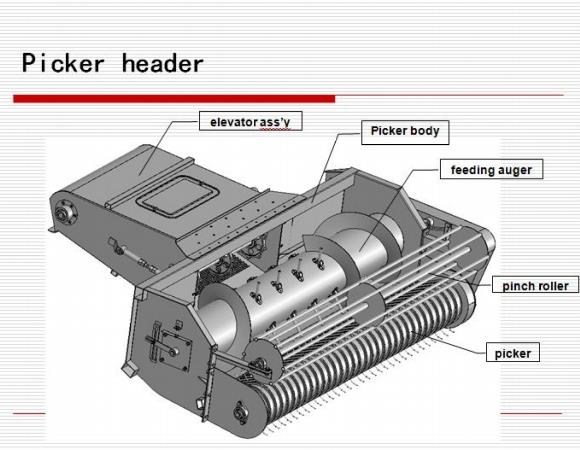

Parts Details:

1(001) 2(001)


Q1. How long is the delivery date for small peanut combine harvester?

A: In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.

Q2. What is your terms of payment for small peanut combine harvester?

A: T/T, L/C, Paypal, Western Union

Q3. Packaging & Shipping

1. We need to apart some parts from the whole machine, such as the header, cab, peeling machine, tank and so on,then it can load to the container, one 40' high container can loading one set.

2. We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.

Technical Parameters:


Type No.

small peanut combine harvester

Structural style

self-propelled wheel type

Function picking

crash and collect the straw

Size ( L*W* H )


Net weight


Gear box


Engine power

120 hp

Cutting width

2500 mm

Work efficiency

0.27—0.54 hm2/h

Total loss rate

≤ 3.5%

Broken rate

≤ 2.0 %

Impurity rate

≤ 5.0 %

Stem recovery rate

≥ 93 %

Unloading way

mechanical unloading

Fruit unloading height

2300 mm

Grass unloading height

2120 mm

Fruit tank volume

2.35 m³

Grass box volume

5.3 m³

Type of drive

2 wheels drive

Transportation and Package

1 set in a 40'HC (dis-assembled )

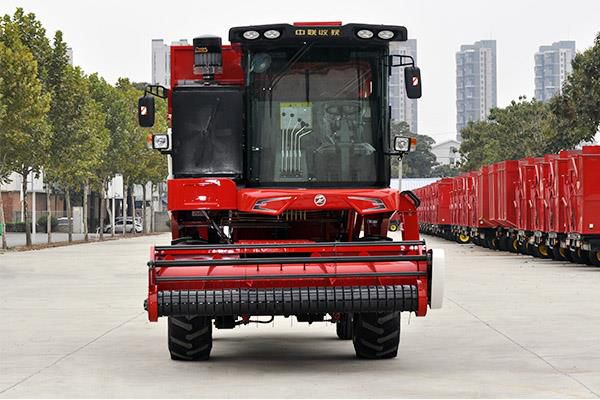

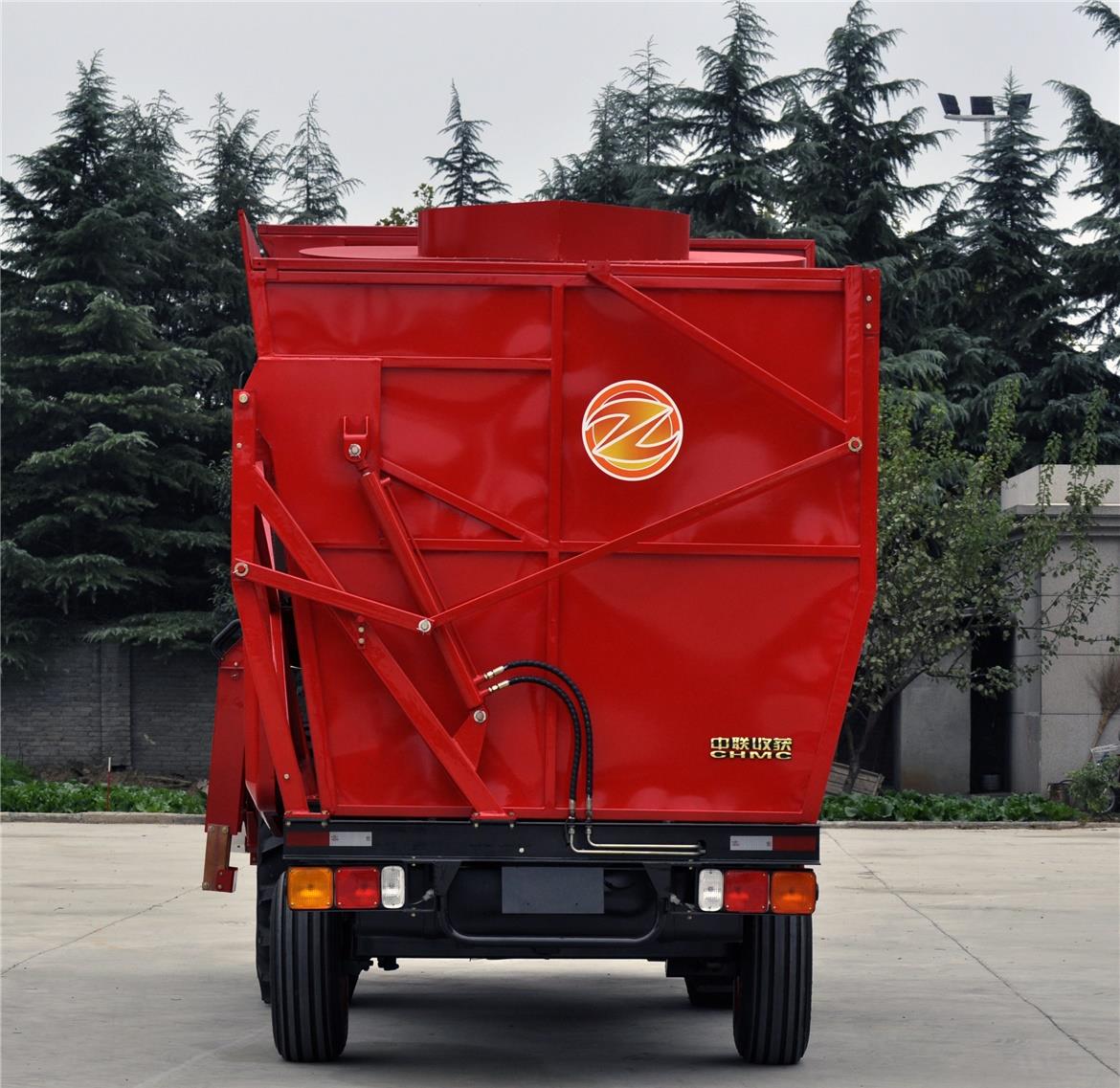

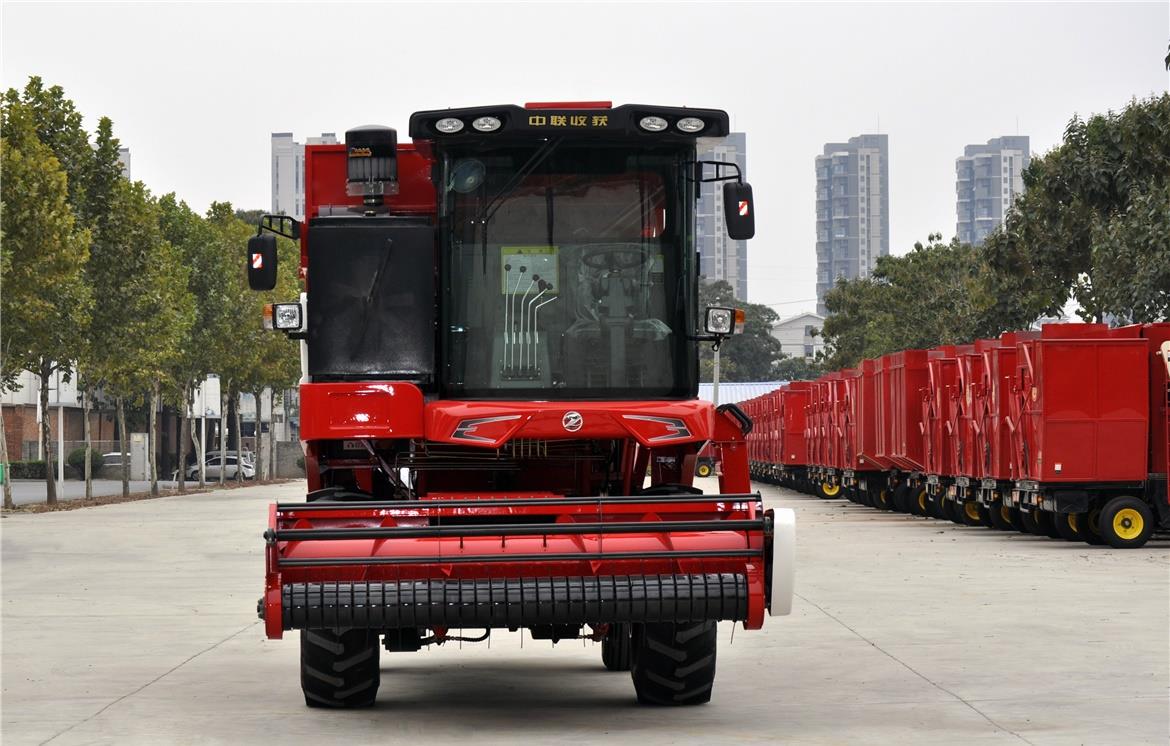

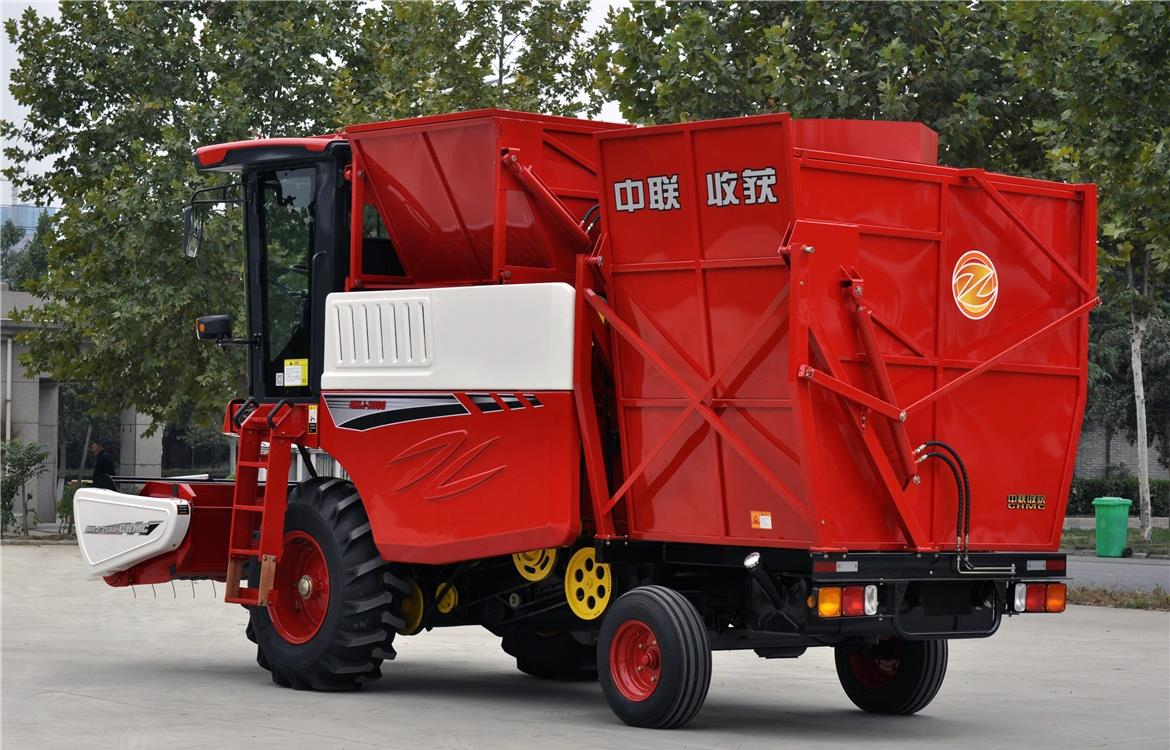

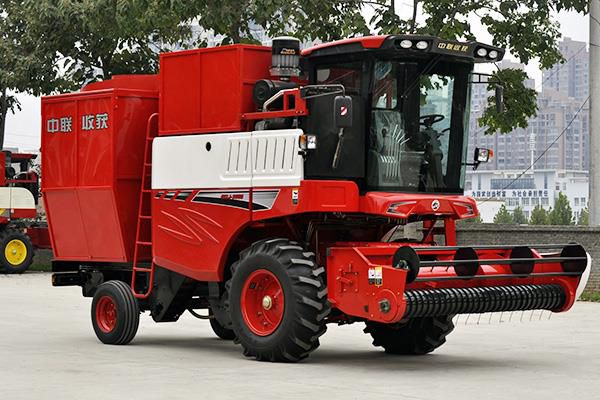

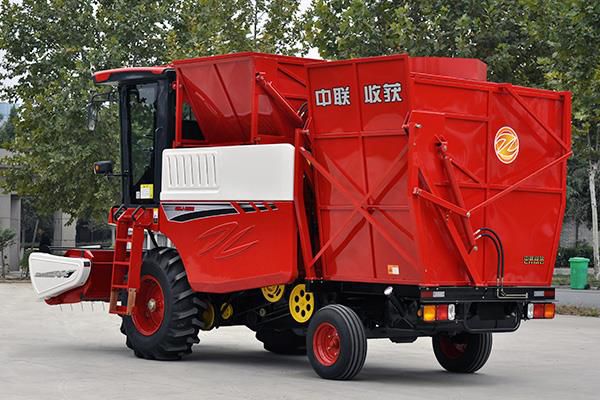

Peanut Harvester Display Viewing:

4HZJ-2500- (7)

4HZJ-2500- (1)

4HZJ-2500- (2)

4HZJ-2500- (3)

4HZJ-2500- (4)

4HZJ-2500- (5)

4HZJ-2500- (6)
